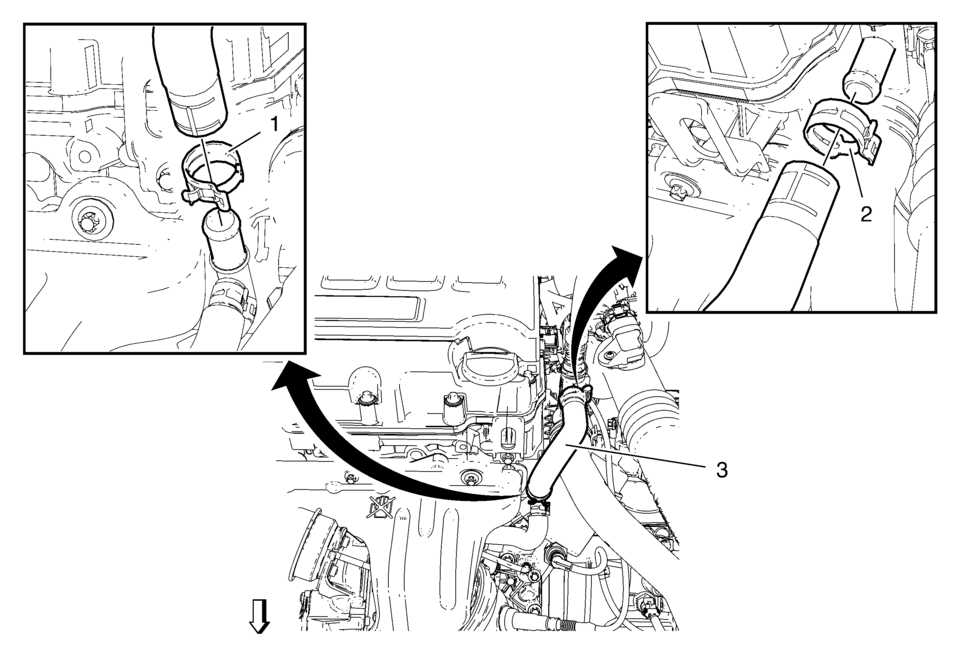

Callout |
Component Name |
---|---|
Preliminary Procedure
|
|
1 |
Oil Cooler Inlet Hose Clamp Procedure
|
2 |
Oil Cooler Inlet Hose Clamp Procedure
|
3 |
Oil Cooler Inlet Hose |
Parking Brake Cable Replacement (Drum Brake)
Removal Procedure
Remove the front floor console. Refer to Front Floor Console Replacement.
Ensure that the parking brake lever is in the fully released position.
Using ONLY HAND TOOLS, remove the adjusting nut (1) from the end of
the front park bra ...
Door Lock and Ignition Lock Folding Key Blade Removal and Installation
Special Tools
BO-51098 Flip Key Blade Fixture
For equivalent region tools, refer to Special Tools.
Caution: Failure to properly support the Remote Keyless Entry
(RKE) transmitter assembly while replacing the key blade may cause internal
damage to the transmitter assembly. ...
Water Pump Replacement (LUW)
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Remove the water pump pulley. Refer to Water Pump Pulley Replacement.
Remove the 5 water pump bolts (2).
Remove the water pump (1).
Insta ...
