Callout |
Component Name |
---|---|
Preliminary Procedures

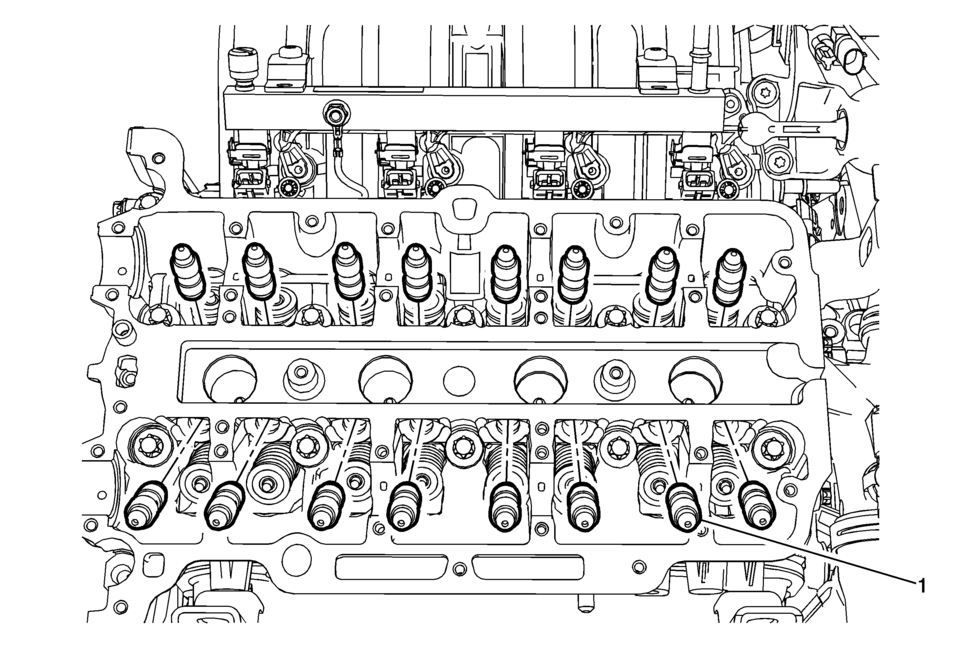

Remove the hydraulic valve lash adjuster arms. Refer to Hydraulic Valve Lash Adjuster Arm Replacement. |
|
1 |
Hydraulic Valve Lash Adjuster Procedure
|
Fuel Injection Fuel Rail Assembly Replacement
Removal Procedure
Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection
and Connection.
Remove engine cover. Refer to Engine Cover Replacement.
Remove the fuel feed pipe from fuel injection fuel rail. Refer to Fuel
Feed Pipe Replacement.
Re ...
Evaporative Emission Canister Replacement (Steel Tank)
Removal Procedure
Remove the evaporative emission canister bracket fasteners (1).
Disconnect the purge solenoid valve electrical connector (1).
Disconnect the evaporative emission canister vent hose (2).
Disconnect the evaporative emission c ...
Control Valve Body Assembly Disassemble (Gen 2)
Control Valve Body Assembly Disassemble
Callout
Component Name
1
Control Solenoid Valve Support
2
Control Valve Body Bolt M5 x 40.5 (Qty: 1)
3
...
