Chevrolet Sonic Repair Manual: Manual Shift Shaft Seal Removal
|
Callout |
Component Name |
|---|---|
|
1 |

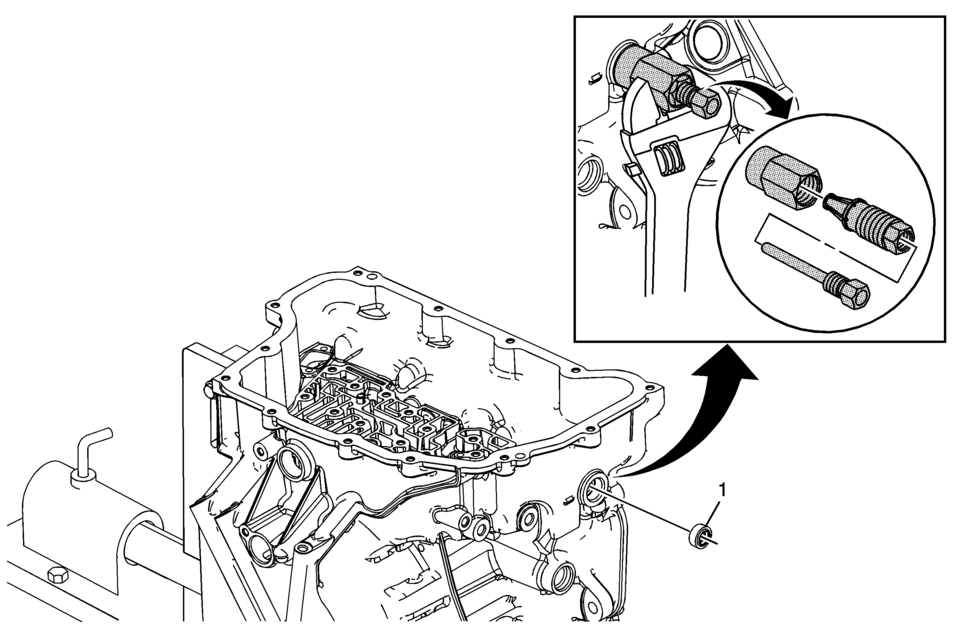

Manual Shift Shaft Seal Note: Use the DT-45201 seal remover to remove the seal to prevent damage to the case surface. Special Tools
DT-45201 Seal Remover For equivalent regional tools, refer to Special Tools. |
Manual Shift Shaft Seal Installation
Manual Shift Shaft Seal Installation
Callout
Component Name
1
Manual Shift Shaft Seal
Special Tool
DT-49101 Seal ...
Manual Shift Shaft and Seal Replacement
Special Tools
DT-45201 Cooler Line Seal Remover
DT-49101 Seal Installer
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the battery tray. Refer ...
