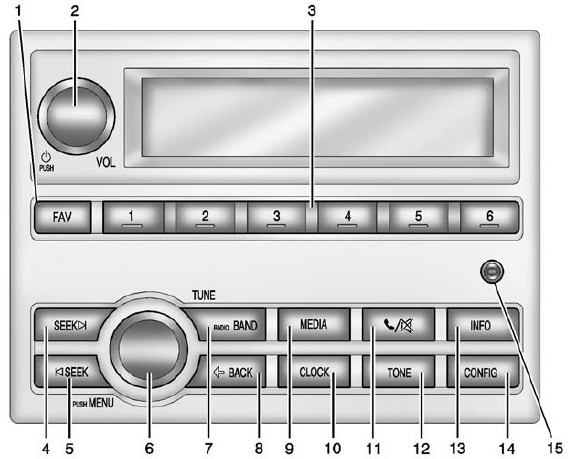

1. FAV (Favorites)
2. /VOL (Power/Volume)
3. Buttons 1−6
4. SEEK
5. SEEK
6. Push/MENU/TUNE
7. RADIO/BAND
8. BACK
9. MEDIA
10. CLOCK
11. (Phone Mute)
12. TONE
13. INFO (Information)
14. CONFIG (Configuration)
15. AUX Port
