Callout |
Component Name |
---|---|
Preliminary Procedure

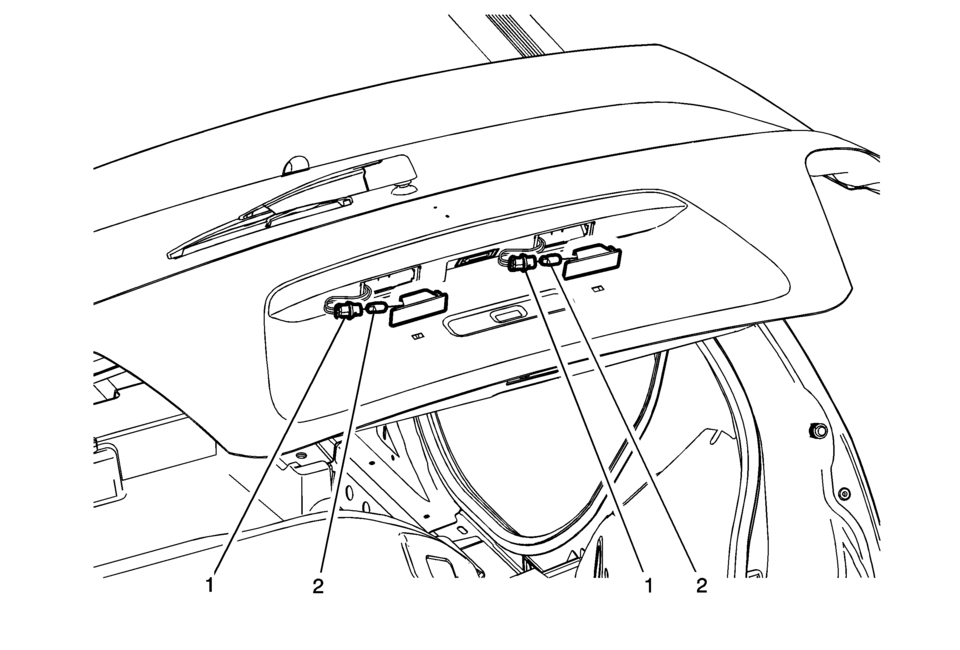

Remove the rear license plate lamp housing. Refer to Rear License Plate Lamp Replacement. |
|
1 |
License Plate Lamp Socket Procedure
Rotate the electrical lamp socket a quarter turn counter-clockwise and remove from the lamp housing. |
2 |
License Plate Lamp Bulb Procedure
Pull the bulb straight out of the electrical lamp socket. |
Instrument Panel Lower Trim Pad Cover Replacement (With AAL)
Instrument Panel Lower Trim Pad Cover Replacement
Callout
Component Name
Preliminary Procedure
Disable the SIR system. Refer to SIR Disabling and Enabling.
1
Instrument Panel Lower Trim Pad Fastener ...
Engine Front Cover with Oil Pump Replacement
Removal Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable
Disconnection and Connection.
Set the engine to TDC. Refer to Camshaft Timing Chain Inspection.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove ...
Oil Pump Cleaning and Inspection
Remove the external rotor with the internal rotor.
Visually inspect the components.
Install the external and the internal rotors.
Inspect the axial clearance of the rotors in respect to the control unit
housing upper edge.
Specifications
Permissible measurement is 0.02?E.058 ...
