Callout |
Component Name |
---|---|
Preliminary Procedure
|
|

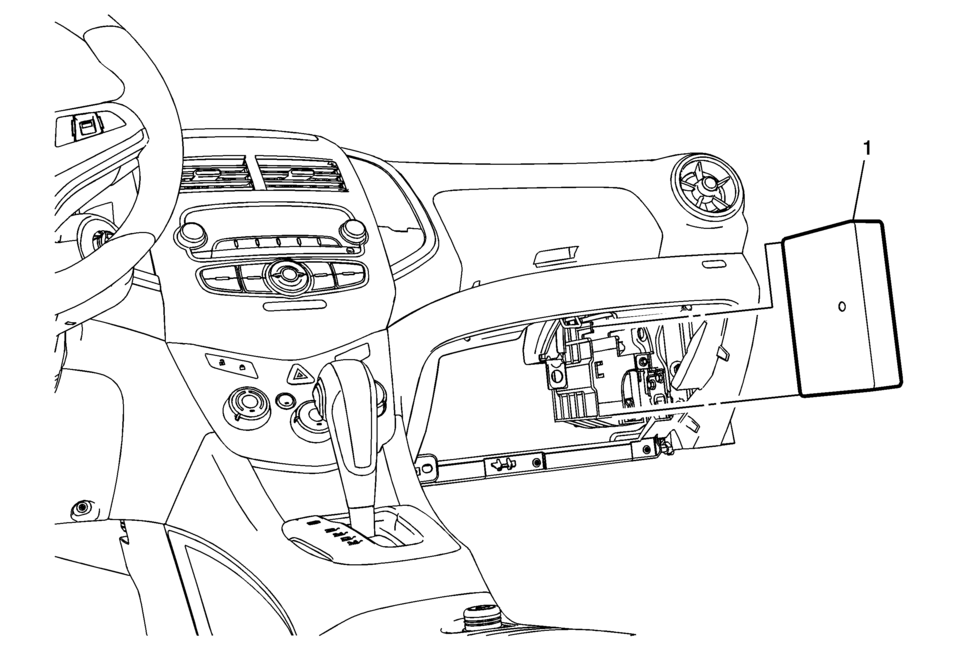

1 |
Communication Interface Module Procedure
|
Climate Control Systems
These climate control systems control the heating, cooling, and ventilation for
the vehicle.
Climate Control System with Heater and Air Conditioning
1. Temperature Control
2. Fan Control
3. Air Delivery Mode Control
4. Driver and Passenger Heated Seats (If Equipped)
5. Air Conditioning
6. ...
Secondary Air Injection Pump Replacement
Secondary Air Injection Pump Replacement
Callout
Component Name
1
Secondary Air Injection Pump Inlet Pipe
Note: Squeeze the retainer on opposite sides to release.
2
Secondary ...
Throttle Body Installation
Install the throttle body (2) and a NEW throttle body
seal ring (1).
Caution: Refer to Fastener Caution.
Install the 4 throttle body bolts (3) and tighten to
8 Y (71 lb in).
...
