Chevrolet Sonic Repair Manual: Crankshaft Position Sensor Replacement
|

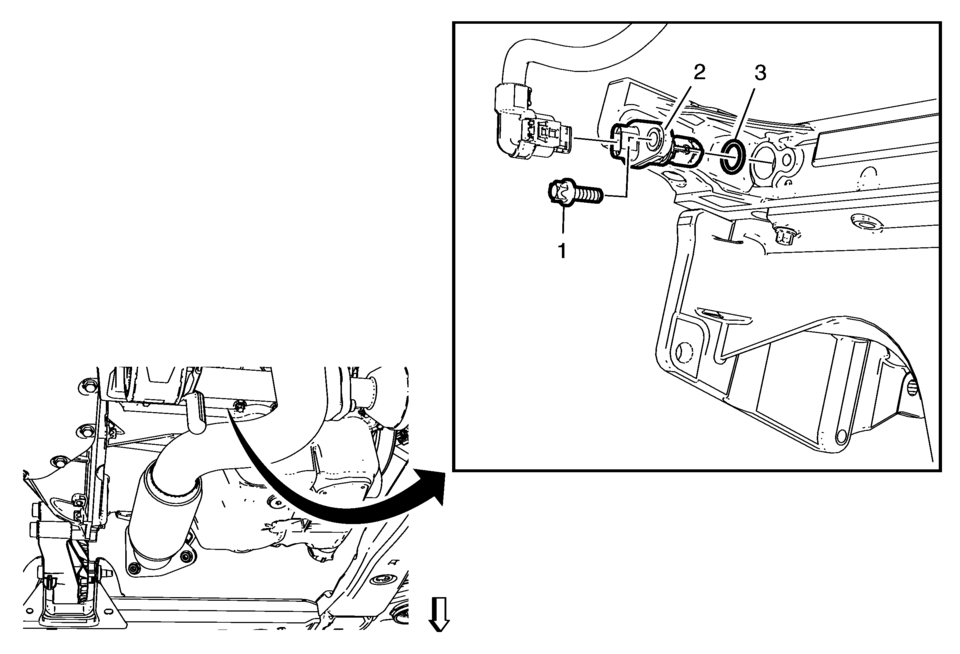

Callout |
Component Name |
|---|---|
|
Preliminary Procedures
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
|
1 |
Crankshaft Position Sensor Bolt Caution: Refer to Fastener Caution.
8 Y (71 lb in) |
|
2 |
Crankshaft Position Sensor Procedure
|
|
3 |
Crankshaft Position Sensor Seal Ring |
Camshaft Position Sensor Replacement
Camshaft Position Sensor Replacement
Callout
Component Name
1
Camshaft Position Sensor Fastener
Caution: Refer t ...
Engine Coolant Temperature Sensor Replacement (Radiator)
Engine Coolant Temperature Sensor Replacement - Radiator
Callout
Component Name
Preliminary Procedures
Drain the cooling system ...
