Chevrolet Sonic Repair Manual: Cylinder Head Removal


    Loosen the 12 cylinder head bolts in the sequence as shown. Use the following

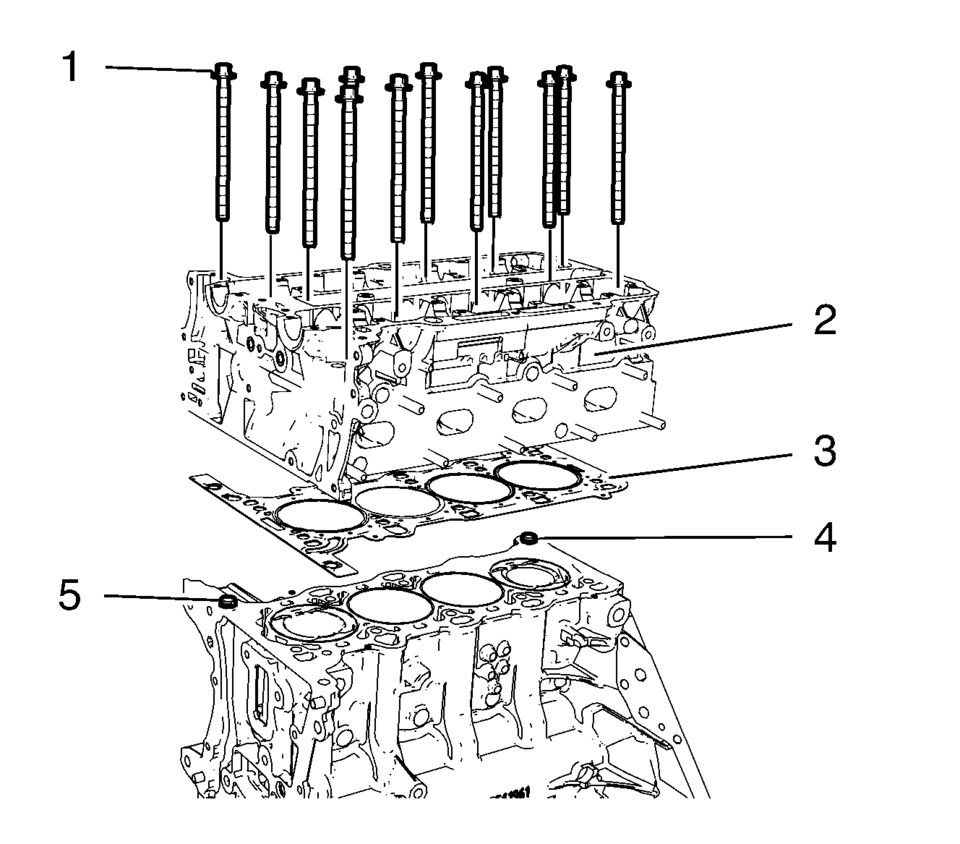

  1. Loosen the 12 cylinder head bolts in the sequence as shown. Use the following procedure:
    1. Loosen the cylinder head bolts 90 degrees.
    2. Loosen the cylinder head bolts 180 degrees.

    Note:

    Do not damage the guide sleeves (4) and (5).

  2. Remove the 12 cylinder head bolts (1).
  3. Remove the cylinder head (2).
  4. Remove the cylinder head gasket (3).
Cylinder Head Installation
Special Tools EN-45059 Torque Angle Sensor Kit For equivalent regional tools, refer to Special Tools. Clean the sealing surfaces. Inspect for plane surface. Cylinder block, cylinder h ...

Cylinder Head Replacement
Special Tools BO-38185 Hose Clamp Pliers EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools. Removal Procedure Disconnect the negative battery cable. Re ...
