Chevrolet Sonic Repair Manual: Floor Air Outlet Duct Replacement - Right Side (LHD)

Chevrolet Sonic Repair Manual / HVAC / Cooling / Floor Air Outlet Duct Replacement - Right Side (LHD)


//

Floor Air Outlet Duct Replacement - Right Side

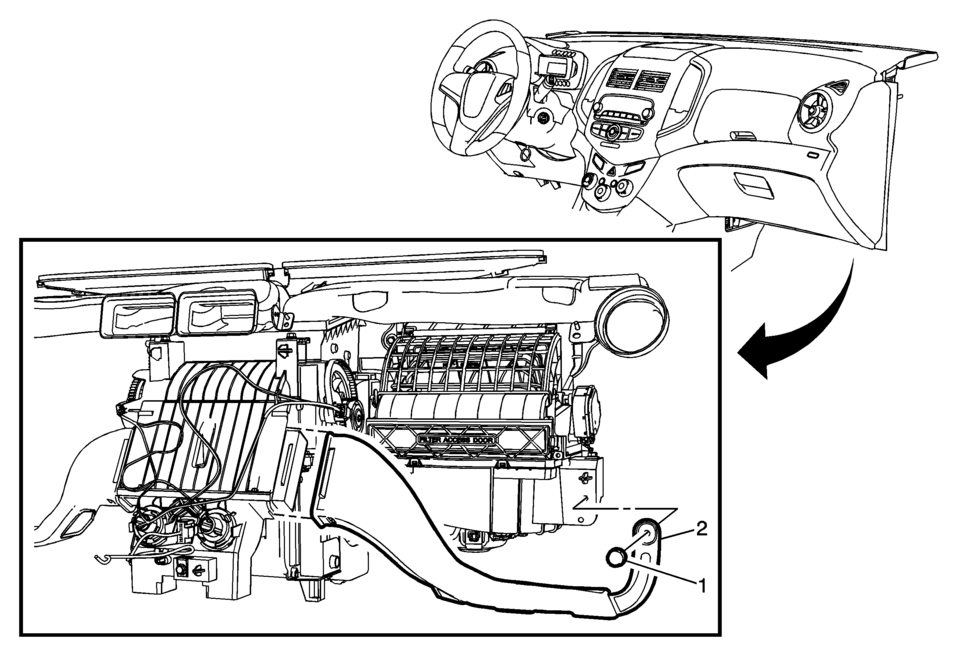

Callout

Component Name

Preliminary Procedure

Remove the instrument panel insulator, if equipped.

1

Floor Air Outlet Duct Fastener

2

Floor Air Outlet Duct
