Callout |
Component Name |
---|---|
Preliminary Procedure
|
|
1 |

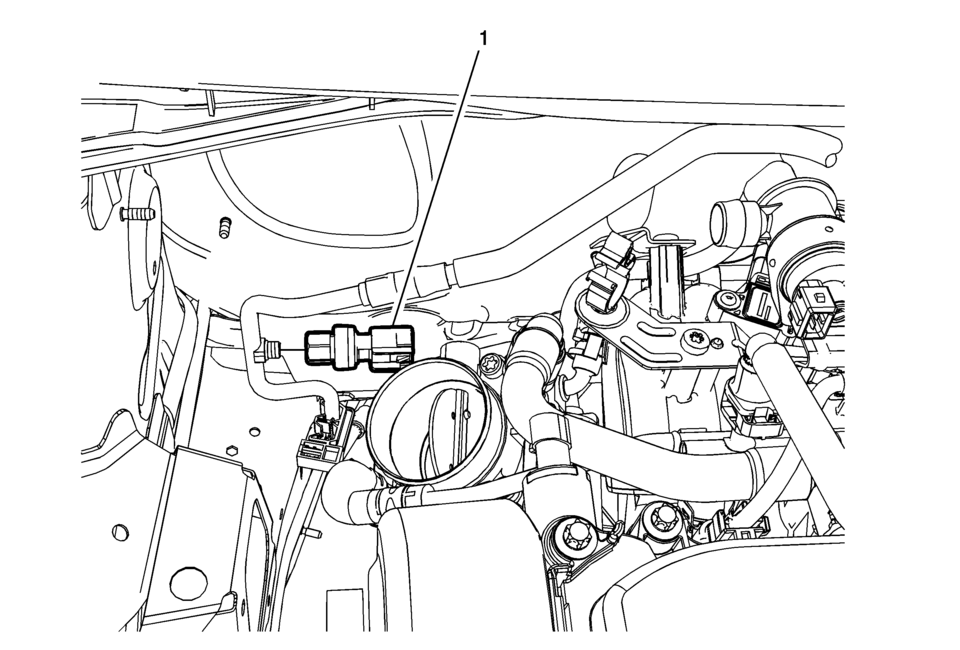

Fuel Pressure Sensor Caution: Refer to Fastener Caution.
19 Y(14 lb ft) |
Instrument Panel Illumination Control
This feature controls the brightness of the instrument panel controls and infotainment
display screen. The thumbwheel is to the left of the steering column on the instrument
panel.
(Instrument Panel Brightness): Move
the thumbwheel up or down and hold, to brighten or dim the instrument pane ...
Rear Wiper/Washer System Description and Operation
The rear window wiper motor is located inside the hatchback door and is directly
connected to the rear window wiper. Ignition voltage is supplied to the rear wiper
motor through the wiper switch. The hatchback rear window washer systems equipped
with a separate washer fluid pump, hose, and noz ...
Intake Manifold Disassemble (1.8L LUW and LWE)
Remove the intake manifold absolute pressure sensor bolt (1).
Remove the manifold absolute pressure sensor (2) from the intake manifold (3).
Remove the intake manifold mount (2) from the intake manifold (1).
Remove the throttle body seal& ...
