Chevrolet Sonic Repair Manual: Fuel Tank Pressure Sensor Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement. |
|
|
1 |

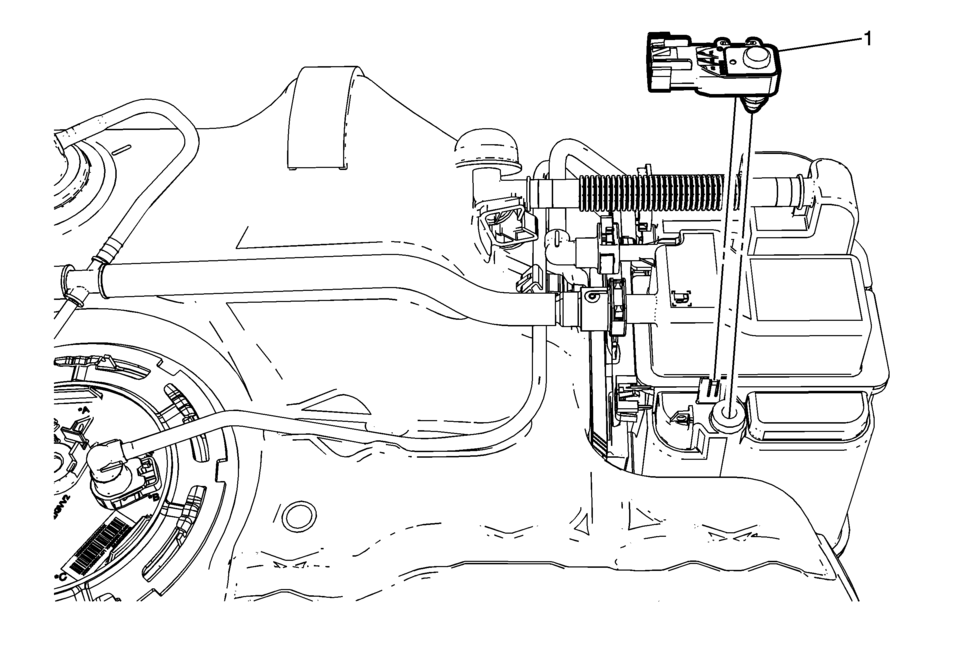

Fuel Tank Pressure Sensor Procedure
Disconnect the FTP sensor electrical connector. |
