Chevrolet Sonic Repair Manual: Heater Core Inlet Tube Replacement

Chevrolet Sonic Repair Manual / HVAC / Cooling / Heater Core Inlet Tube Replacement



Heater Core Inlet Tube Replacement

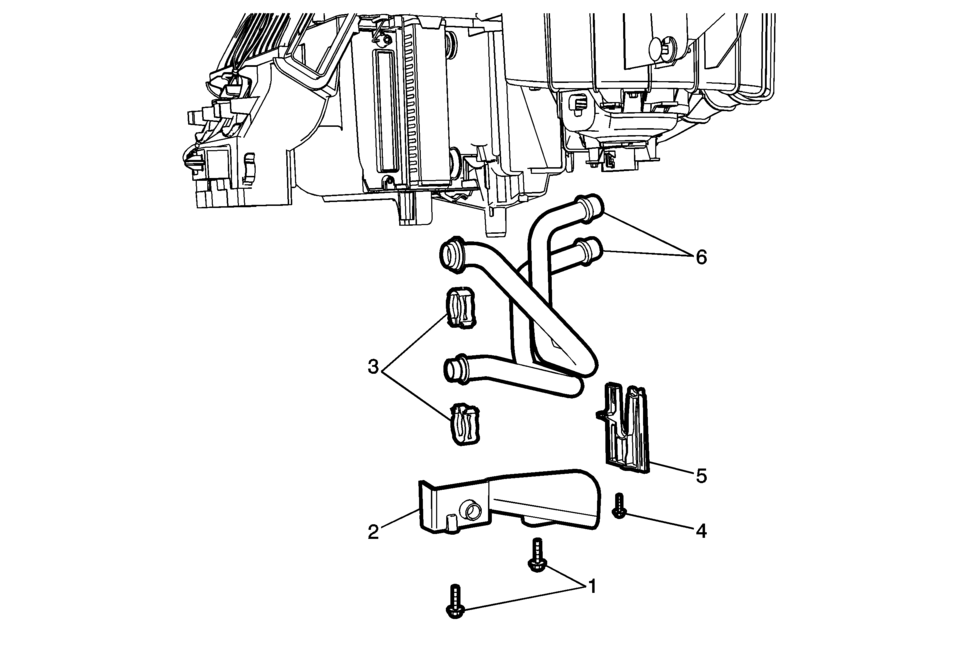

Callout

Component Name

Preliminary Procedures

  1. Remove the Heater and Air Conditioning Evaporator and Blower Module. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation.
  2. Disconnect the electrical connectors as necessary.

1

Heater Core Tube Cover Bolt (Qty: 2)

Caution:

Refer to Fastener Caution.

2

Heater Core Tube Cover

3

Heater Core Tube Clamp (Qty: 2)

4

Heater Core Tube Rear Cover Bolt

5

Heater Core Tube Rear Cover

6

Heater Core Tube

Note:

Heater Core tubes are serviced as a kit .

Flushing
Special Tools BO 42220 Universal 12V Leak Detection Lamp GE 41447 R-134A A/C Tracer Dye Box of 24 GE 45268 A/C Flush Adapter Kit For equivalent regional tools, refer to S ...

Heater Core Outlet Tube Replacement
Heater Core Outlet Tube Replacement Callout Component Name Preliminary Procedures Remove the Heater and Air Conditioning Evaporator ...
