Input and Output Speed Sensor Installation

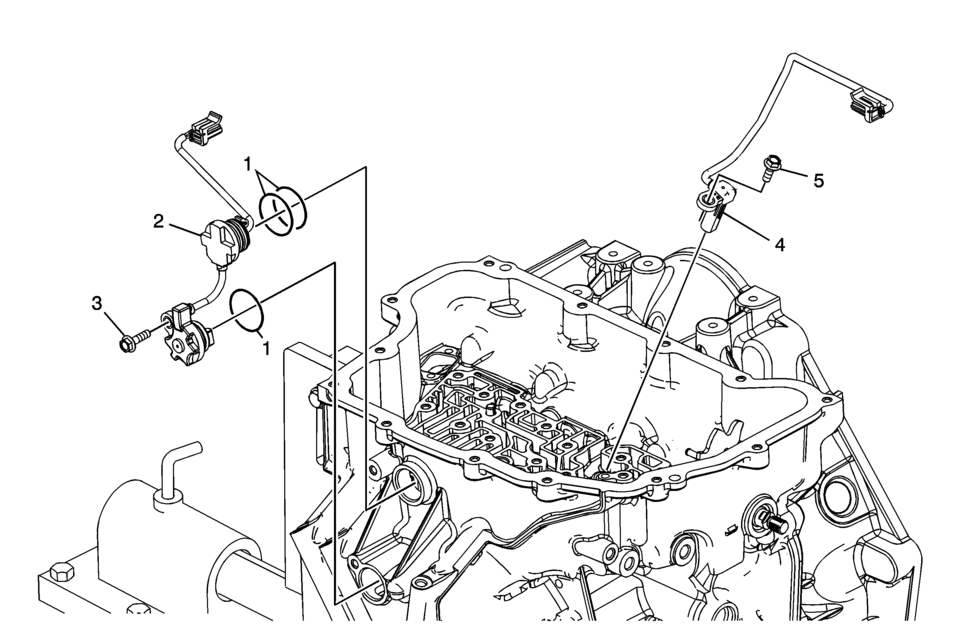

Callout

Component Name

1

Input Speed Sensor Assembly Seals

2

Input Speed Sensor Assembly

3

Input Speed Sensor Bolt M6 x 23 (Qty: 1)

Caution:

Refer to Fastener Caution.

Tighten


9 Y (80 lb in)

4

A/Trans Output Speed Sensor Assembly

5

A/Trans Output Speed Sensor Bolt M6 x 18 (Qty: 1)

Tighten


9 Y (80 lb in)

Input Speed Sensor Replacement
Removal Procedure Remove the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement. ...

Input and Output Speed Sensor Removal
Input and Output Speed Sensor Removal Callout Component Name 1 A/Trans Output Speed Sensor Bolt M6 x 1 ...
