Chevrolet Sonic Repair Manual: Input Shaft Disassemble

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Manual / General / Input Shaft Disassemble

Note:

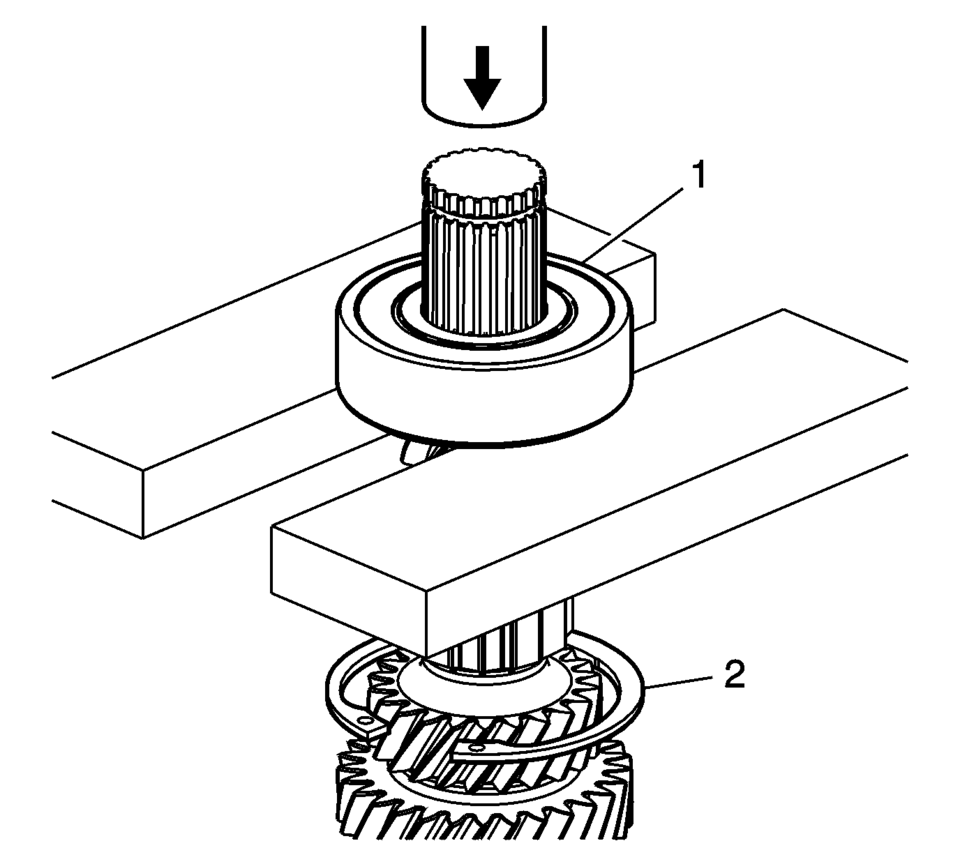

The input shaft rear bearing retaining ring (2) remains loose on the shaft.

Remove the input shaft rear bearing assembly (1) using a hydraulic press.
Remove the retaining ring (2).

Input Shaft Assemble

Special Tools J-840733 Driver For equivalent regional tools, refer to Special Tools. Note: Ensure the input shaft rear bearing retaining ring (2) is placed on the input s ...

Main Shaft Assemble (Gen 1)

Special Tools 3-0207944 Main Shaft Tapered Bearing Insert Tool For equivalent regional tools, refer to Special Tools. Install the 4th gear bearing assembly (1). Note: T ...
