Chevrolet Sonic Repair Manual: Passenger Compartment Air Filter Replacement (LHD)
|

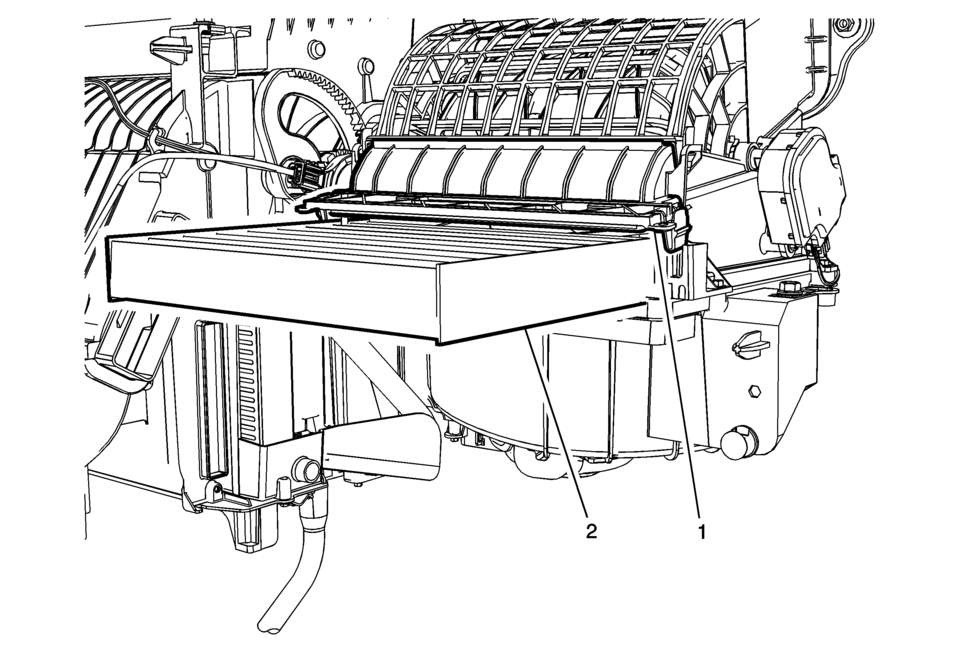

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove IP compartment. Refer to Instrument Panel Lower Compartment Replacement. |
|
|
1 |
Passenger Compartment Air Filter Service Lid Retainer Procedure
Release the retainer and open the service lid. |
|
2 |
Passenger Compartment Air Filter |
Air Cleaner Element Replacement
Removal Procedure
Disconnect mass air flow sensor wiring harness plug (2) from mass air
flow sensor (3).
Unclip mass air flow sensor wiring harness retainer cl ...
