Rear Side Door Lock Cylinder Opening Cover Replacement

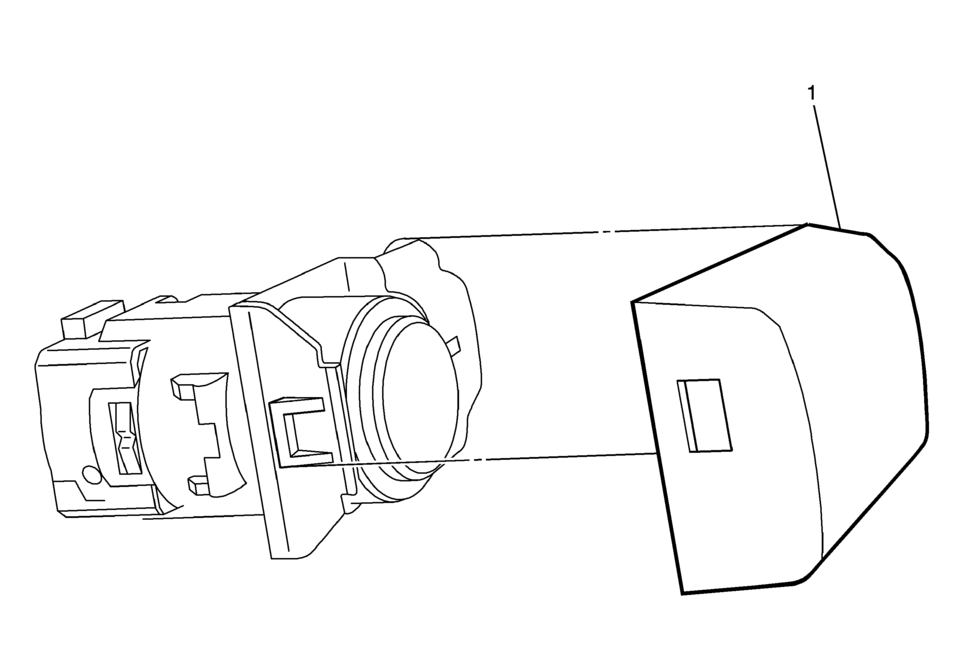

Callout	Component Name
1	Rear Side Door Lock Cylinder Opening Cover Procedure Remove the rear side door lock cylinder, Do Not remove the outside door handle. Refer to Rear Door Lock Cylinder Replacement. Do Not remove the lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder. Tip: Use a small flat-bladed tool to release the lock cylinder bezel retainers location on both sides.
