Chevrolet Sonic Repair Manual: Transmission Identification Information

456789

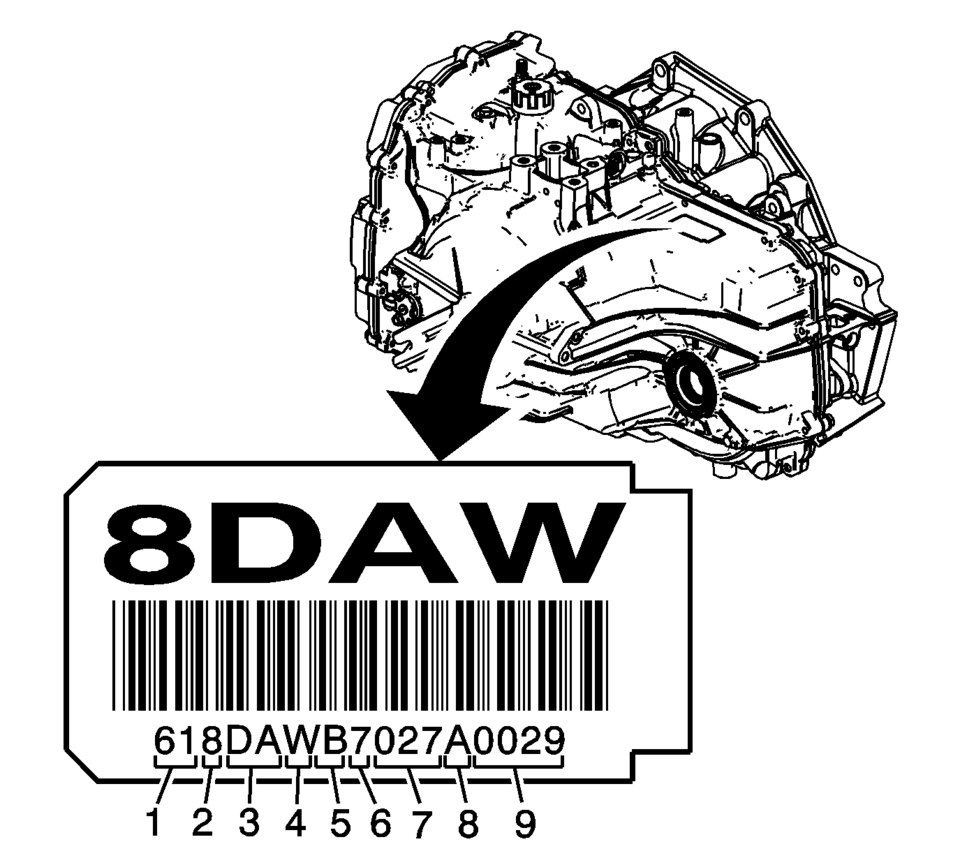

(1)	Code for Automatic Transmission
(2)	Model Year
(3)	Model for Transmission
(4)	Transmission Family
(5)	Source Code for Plant
(6)	Calender Year
(7)	Julian Date
(8)	Shift/Line (A/B)
(9)	Numeric sequence starting at 0001 @ 12:01 AM each day

Transmission General Description

The Hydra-matic 6T30/40/45/50 is a fully automatic, 6-speed, front-wheel drive, electronic-controlled transmission. It consists primarily of a 4-element torque converter, a compound planetary gear ...

Transmission Indicators and Messages

The following transmission-related indicators and messages may be displayed on the Instrument Panel Cluster (IPC). For a complete listing and description of all vehicle indicators and messag ...
