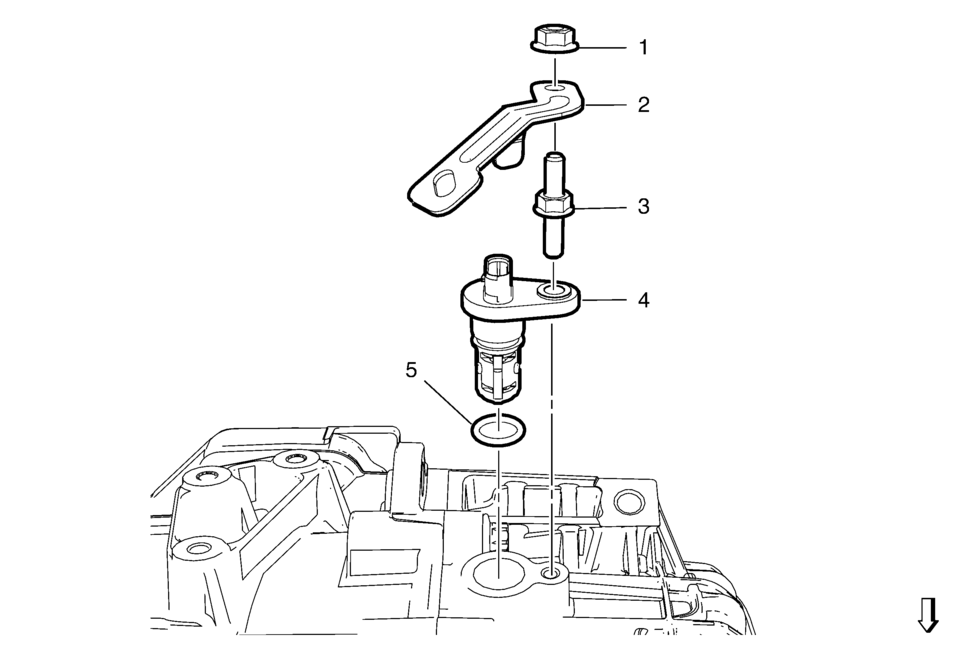

Callout |
Component Name |
---|---|
1 |
Engine Wiring Harness Bracket Nut Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
2 |
Engine Wiring Harness Bracket |
3 |
Vehicle Speed Sensor Bolt Tighten
9 Y (80 lb in) |
4 |
Vehicle Speed Sensor Procedure
Disconnect wiring harness connector. |
5 |
Vehicle Speed Sensor O-Ring Procedure
DISCARD the seal and install NEW seal. |
Heated Seats Description and Operation
Heated Seat Components
The driver and passenger heated seats each consist of the following components:
Left heated seat switch
Right heated seat switch
HVAC control module
Seat heating control module
Seat cushion heating element
Seat back heating element
Seat cushion ...
Battery Negative Cable Replacement
Battery Negative Cable Replacement
Callout
Component Name
Preliminary Procedures
Disconnect the battery current sensor connector.
Remove the battery tray. Refer to Battery Tray Replacement.
1
Bo ...
Radiator Outlet Hose Replacement (LDE LUW)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools.
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Remove the radiator outlet hose clamp (1) at the engine using BO-38185 ...
