Air Conditioning Condenser Replacement

Callout

Component Name

Preliminary Procedure

  1. Drain the refrigerant. Refer to Refrigerant Recovery and Recharging
  2. Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement.
  3. Remove air compressor and condenser hose assembly from the condenser and position out of the way. Refer to Air Conditioning Compressor and Condenser Hose Replacement.
  4. Remove the radiator upper air baffle. Refer to Radiator Air Baffle Replacement

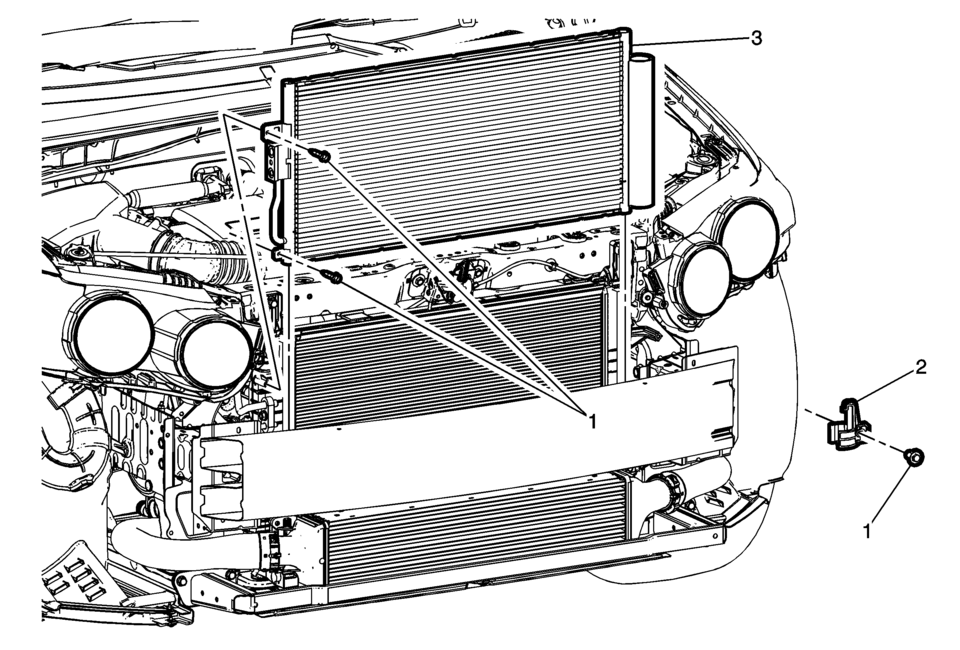

1

Air Conditioning Condenser Fasteners (Qty: 3)

Caution:

Refer to Fastener Caution.

2

Air Conditioning Condenser Bracket

3

Air Conditioning Condenser Assembly

Procedure

Transfer all necessary components.
