Callout |
Component Name |
---|---|
1 |

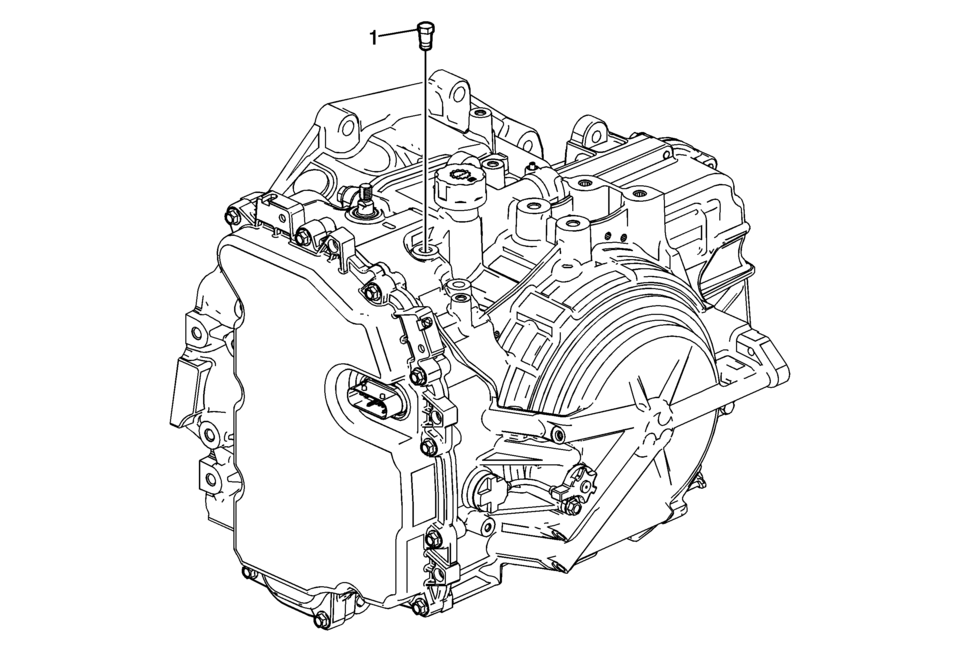

Fluid Pressure Test Plug Caution: Refer to Component Fastener Tightening Caution.
12 Y (106 lb in) |
Special Tools
Illustration
Tool Number/ Description
BO-594-A
Hand Rivet Tongs
...
Brake Drum Diameter Measurement
Warning: Refer to Brake Dust Warning.
Remove brake drum. Refer to Brake Drum Replacement
Clean the brake shoe lining contact surface of the brake drum (2) with denatured
alcohol or an equivalent approved brake cleaner.
Using a brake drum micrometer (1) calibra ...
Charge Air Cooler Outlet Air Hose Replacement
Removal Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
Loosen the clamp (1) at the charge air cooler outlet pipe (2) to throttle
body (3).
Disconnect the intake air pressure and temperature sensor harness connect ...
