Battery Negative Cable Replacement

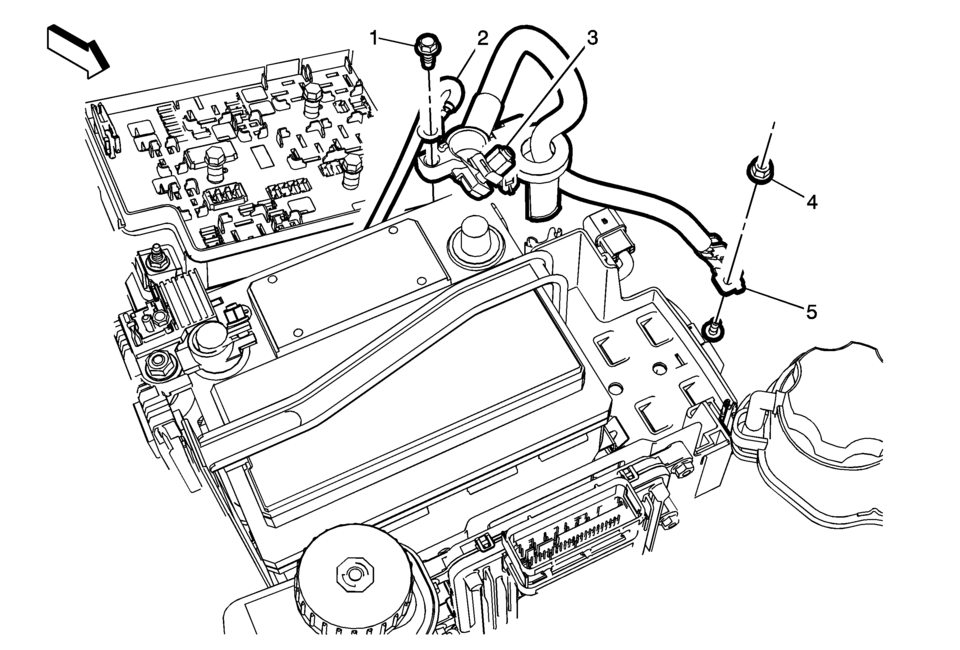

Callout

Component Name

Preliminary Procedures

  1. Disconnect the battery current sensor connector.
  2. Remove the battery tray. Refer to Battery Tray Replacement.

1

Body Harness Terminal Bolt

Caution:

Refer to Fastener Caution.

Tighten


9 Y (80 lb in)

2

Body Harness Terminal

3

Battery Negative Post Clamp Nut

Tighten


9 Y (80 lb in)

4

Battery Negative Frame Ground Nut

Tighten


22 Y (16 lb ft)

5

Battery Negative Cable

Procedure

Transfer the current sensor, noting the location and direction on the cable.

Battery Negative Cable Disconnection and Connection
