Chevrolet Sonic Repair Manual: Camshaft Position Actuator Solenoid Valve Removal

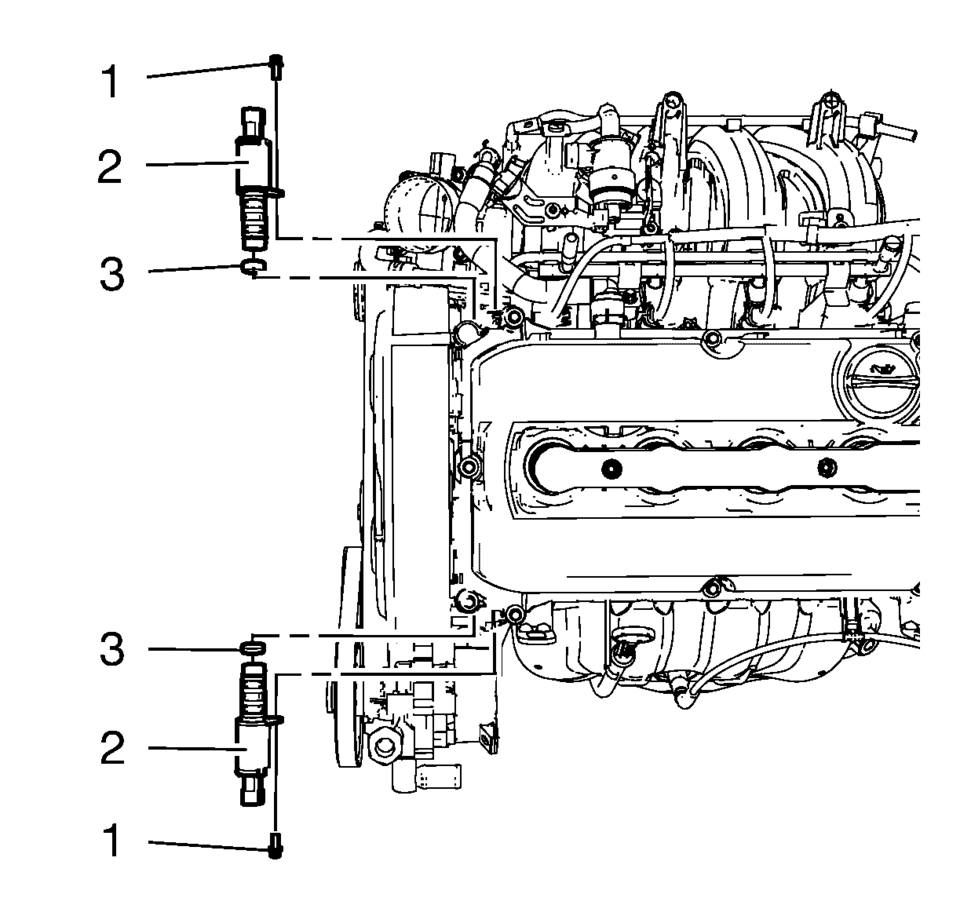

- Remove the camshaft position actuator solenoid valve bolts (1).
- Remove the camshaft position actuator solenoid valves (2).
- Remove the camshaft position actuator solenoid valve seals (3).
Camshaft Position Actuator Solenoid Valve Installation
Caution: The camshaft position actuator solenoid valves must be
kept parallel to the engine front cover during removal and installation.
The camshaft position actuator solenoid va ...
Camshaft Position Actuator Solenoid Valve Replacement
Camshaft Position Actuator Solenoid Valve Replacement
Callout
Component Name
1
Camshaft Position Actuator Solenoid Valve ...
