Chevrolet Sonic Repair Manual: Camshaft Position Actuator Solenoid Valve Replacement
|

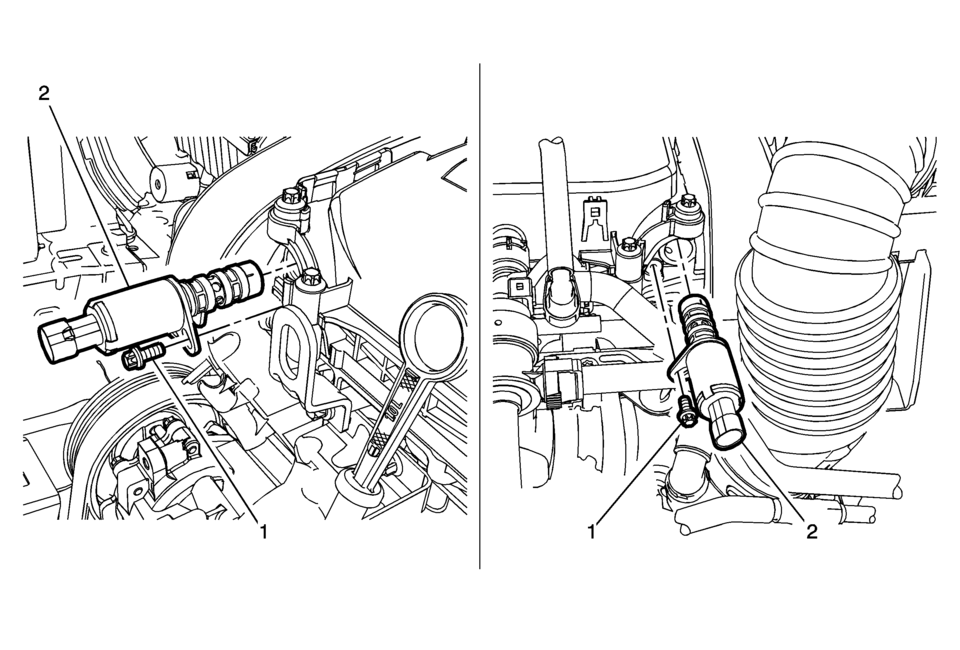

Callout |
Component Name |
|---|---|
|
1 |
Camshaft Position Actuator Solenoid Valve Bolt Caution: Refer to Fastener Caution.
6 Y (53 lb in) |
|
2 |
Camshaft Position Actuator Solenoid Valve Tip:: Coat the camshaft position actuator solenoid valve seals with NEW engine oil. |
Camshaft Position Actuator Solenoid Valve Removal
Remove the camshaft position actuator solenoid valve bolts (1).
Remove the camshaft position actuator solenoid valves (2).
Remove the camshaft position actuator solenoid val ...
Camshaft Removal
Note: Note removal sequence 1?E.
Remove the 4 camshaft bearing cap bolts.
Note: Release the bearing support by striking it gently with a
plastic hammer.
...
