Chevrolet Sonic Repair Manual: Drive and Driven Sprocket, Drive Link, and Park Pawl Removal (6T30)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Drive and Driven Sprocket, Drive Link, and Park Pawl Removal (6T30)



Drive and Driven Sprocket, Drive Link, and Park Pawl Removal

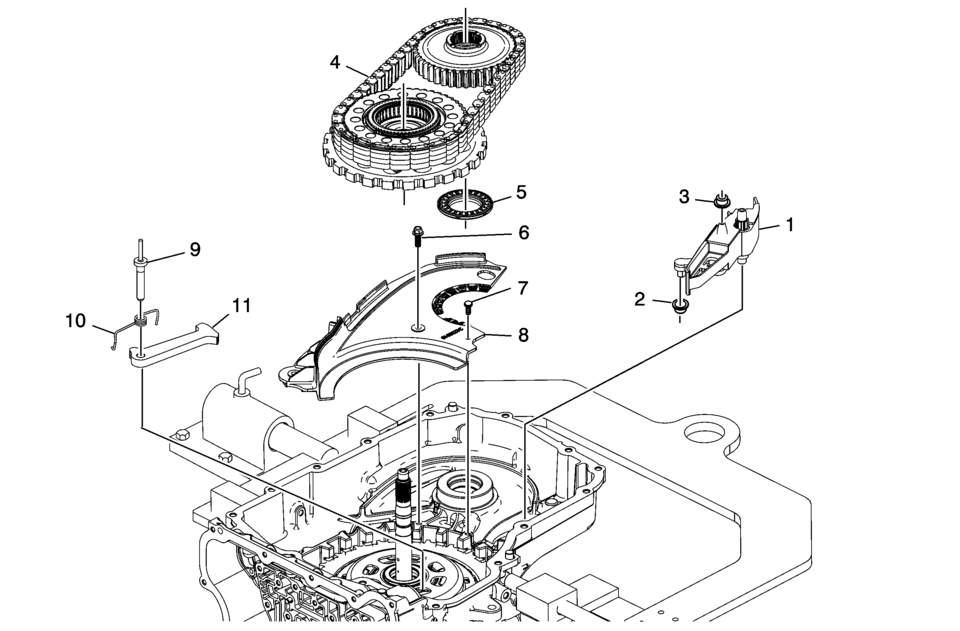

Callout

Component Name

1

Drive Link Lube Scoop

2

Drive Link Lube Scoop Seals

3

Drive Link Lube Fluid Seal

4

Driven Sprocket Assembly, Drive Sprocket and Park Gear Assembly and Drive Link

Note:

  1. The drive link, drive and driven sprocket assemblies must be removed at the same time.
  2. The driven sprocket ball bearing inner race has a slight interference fit with the case. Pull straight up to ease removal.

5

Driven Sprocket Bearing Assembly

Note:

The driven sprocket bearing may be stuck to the driven sprocket.

6

Baffle Retainer

7

Front Differential Carrier Baffle Bolts M6 x 16 (Qty: 2)

8

Front Differential Carrier Baffle

9

Park Pawl Shaft

10

Park Pawl Spring

11

Park Pawl

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45/50)
Drive and Driven Sprocket, Drive Link, and Park Pawl Installation Callout Component Name 1 Front Differential Carrier Ba ...

Drive and Driven Sprocket, Drive Link, and Park Pawl Removal (6T40/45/50)
Drive and Driven Sprocket, Drive Link, and Park Pawl Removal Callout Component Name 1 Drive Link Lube Scoop ...
