Chevrolet Sonic Repair Manual: Engine Flywheel Removal
Special Tools
EN-652 Flywheel Holder
For equivalent regional tools, refer to Special Tools.

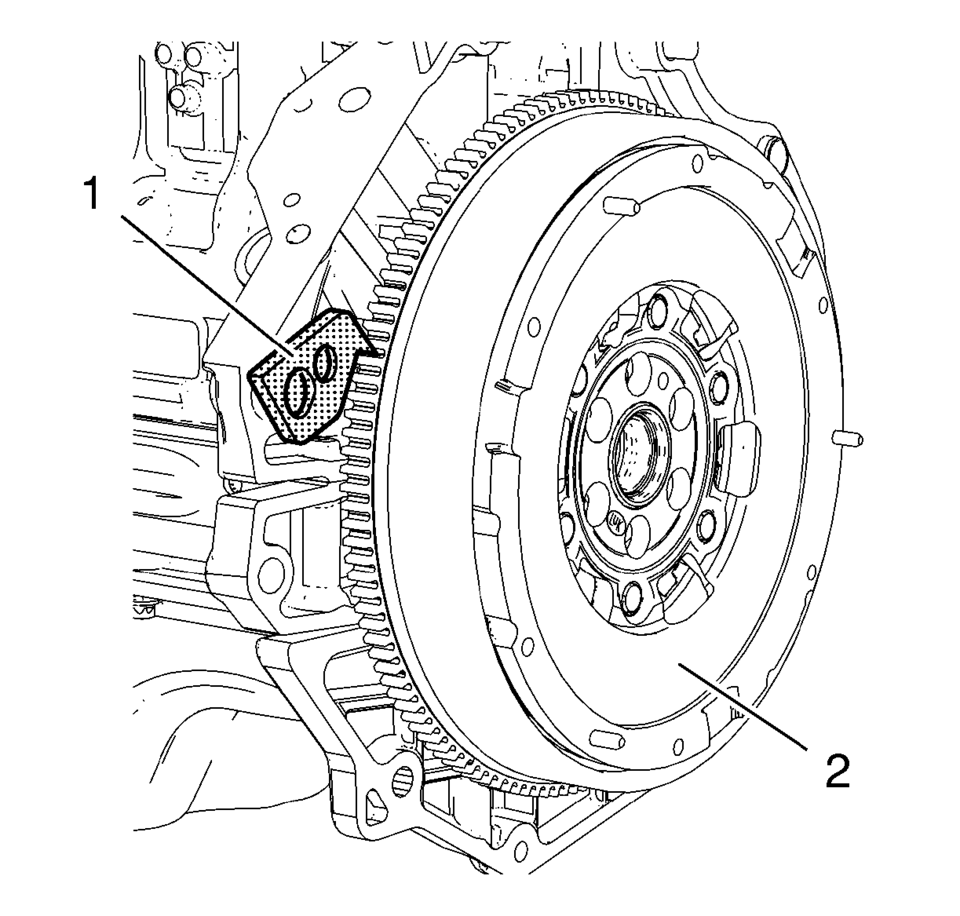

- Install EN-652 holder (1) to hold the engine flywheel (2).

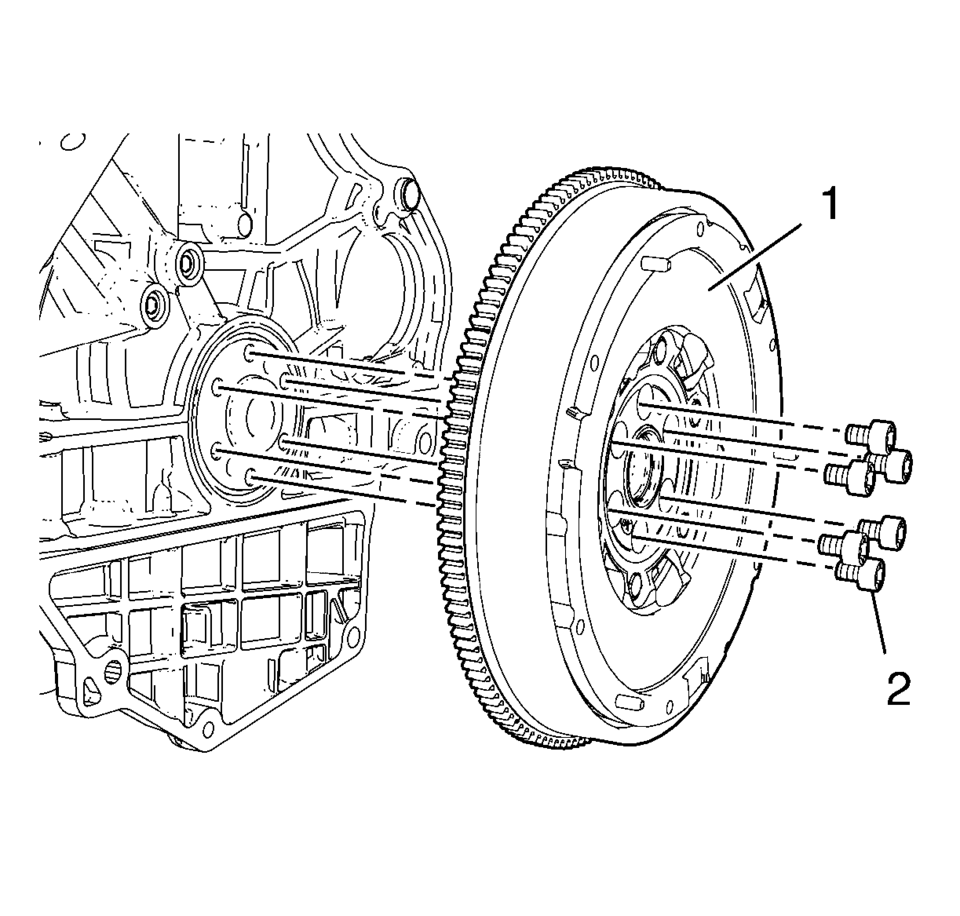

- Remove and DISCARD the 6 engine flywheel bolts (2).
- Remove the engine flywheel (1).
Engine Flywheel Installation
Special Tools
EN-652 Flywheel Holder
EN-45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools.
Clean the thread in the crankshaft.
Install the crank ...
