Chevrolet Sonic Repair Manual: Evaporative Emission Canister Purge Solenoid Valve Replacement
|

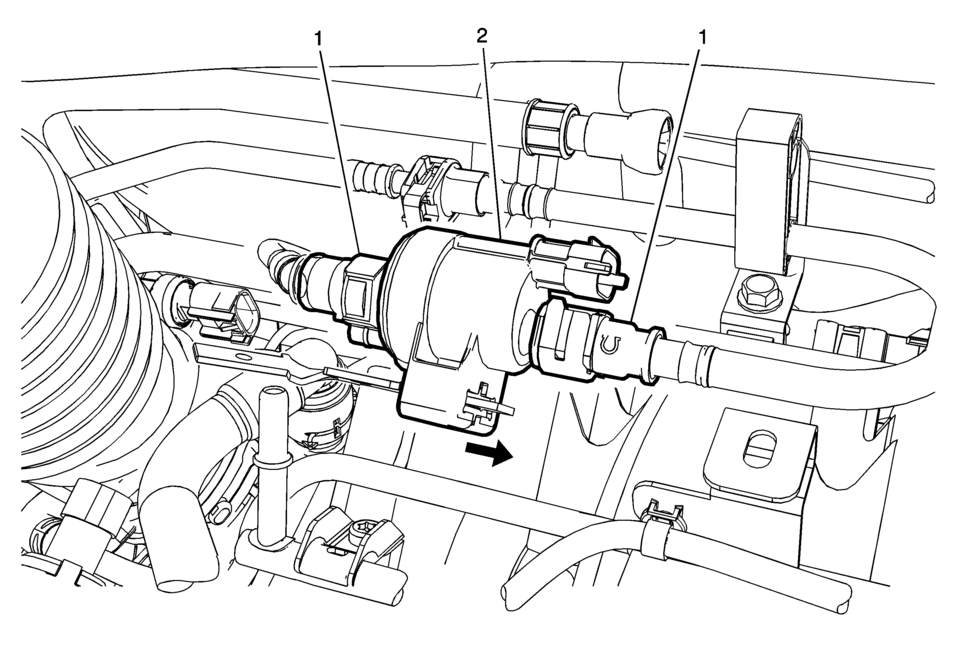

Callout |
Component Name |
|---|---|
|
1 |
Purge Pipe Fittings (Qty: 2) Procedure
Disconnect the vacuum lines quick connect fitting from the evaporative emission canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service. |
|
2 |
Evaporative Emission Canister Purge Solenoid Valve Procedure
|
Evaporative Emission Canister Replacement (Steel Tank)
Removal Procedure
Remove the evaporative emission canister bracket fasteners (1).
Disconnect the purge solenoid valve electrical connector (1).
Disconn ...
Evaporative Emission Canister Vent Solenoid Valve Replacement
Evaporative Emission Canister Vent Solenoid Valve Replacement
Callout
Component Name
Preliminary Procedures
Disconnect the battery ...
