Chevrolet Sonic Repair Manual: Floor Panel Carpet Replacement

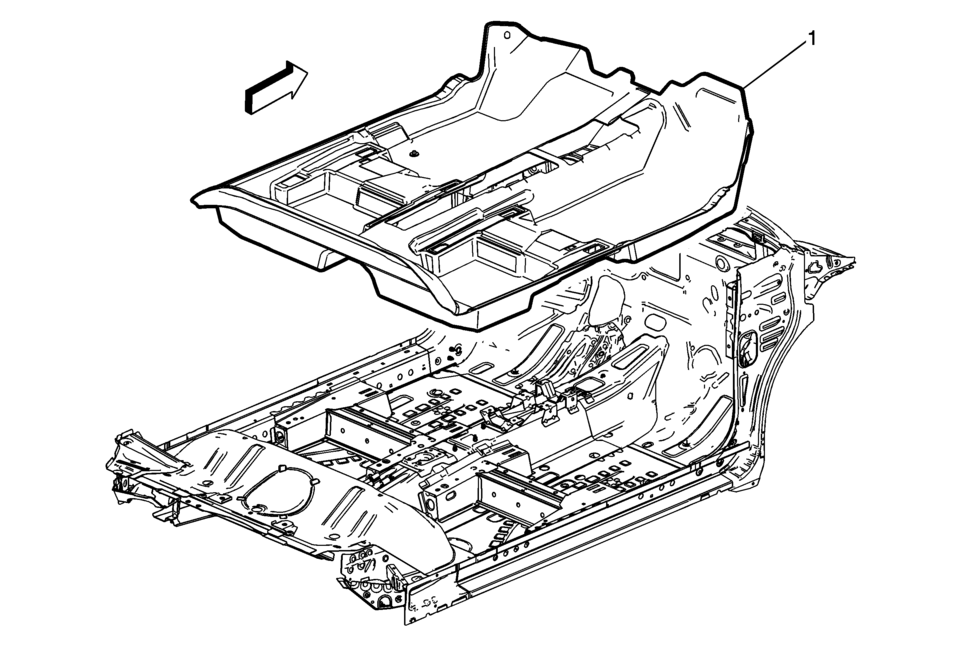

Floor Panel Carpet Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove front seats. Refer to Driver or Passenger Seat Removal and Installation.
  2. Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation.
  3. Remove the front floor console. Refer to Front Floor Console Replacement.
  4. Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement.
  5. Remove the rear side door opening floor carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement.
  6. Remove the center pillar lower trim panels. Refer to Center Pillar Lower Trim Panel Replacement.

1

Front Floor Panel Carpet Assembly
