Callout |
Component Name |
---|---|

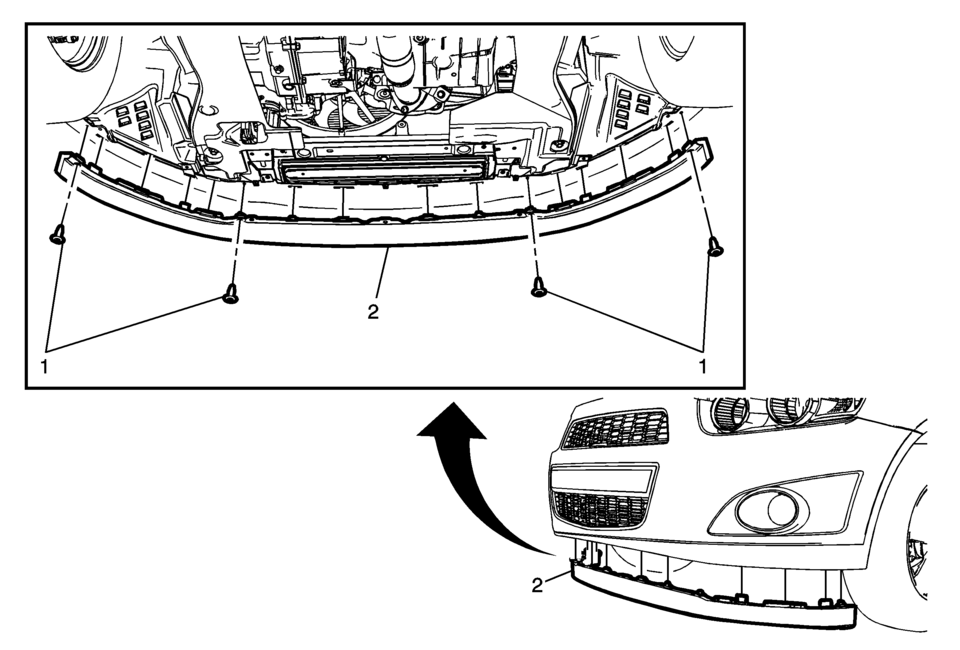

Preliminary Procedure
Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement. |
|
1 |
Front Bumper Fascia Air Deflector Screw (Qty:?€‰4) Caution: Refer to Fastener Caution.
8?€‰Y (71?€‰lb?€‰in) |
2 |
Front Bumper Fascia Air Deflector |
Instrument Panel Fuse Block
The instrument panel fuse block is on the underside of the driver side instrument
panel.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
...
Rear Compartment Floor Panel Carpet Replacement (Sedan)
Rear Compartment Floor Panel Carpet Replacement
Callout
Component Name
1
Rear Compartment Floor Panel Carpet Assembly
...
Heater Outlet Hose Replacement (LDE, LUW)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Disengage the heater outlet hose quick connect clip (1) at the heater ...
