Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement. |
|
1 |

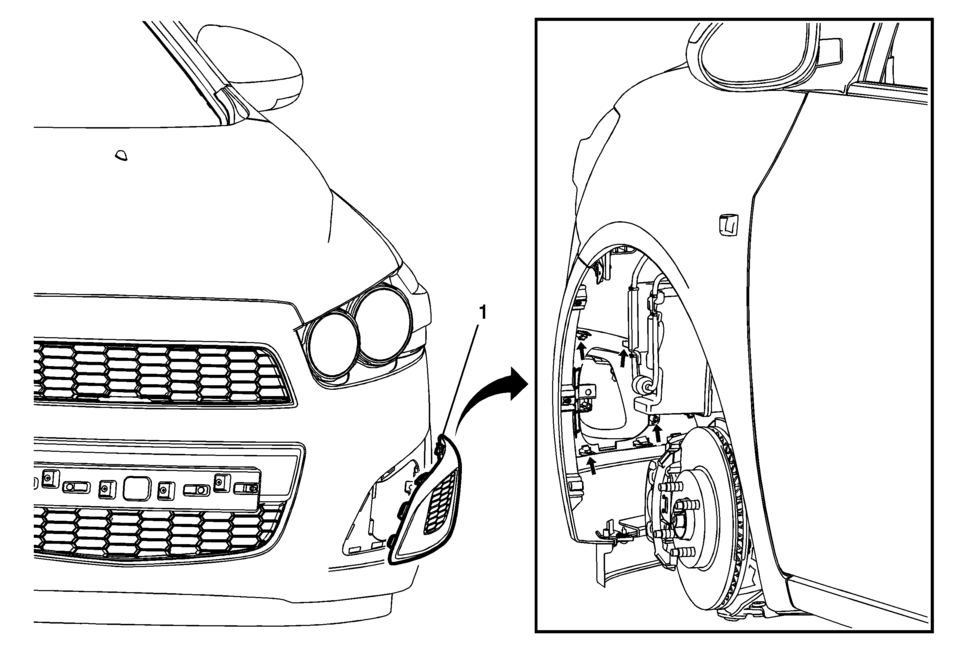

Front Fog Lamp Front Cover Procedure
Release the tabs securing the front fog lamp front cover to the front bumper fascia and remove. |
Overview (Radio with CD/USB)
91011121314151617
O /VOL (Power/Volume)
Turns the system on or off and adjusts the volume.
Z (Eject)
Removes a disc from the CD slot.
Buttons 1−6
Radio: Saves and selects favorite stations.
AUX Port
3.5 mm (1/8 in) connection for external devices.
...
Control Solenoid Valve and Transmission Control Module Assembly Programming
and Setup (6T30/6T40/6T45/6T50)
The following service procedures require either a programming or a setup event
be performed for a complete repair. The transmission control module (TCM) is part
of the control solenoid valve assembly, and is not serviced separately.
Transmission Control Module (TCM)
Replaceme ...
Engine Flywheel Removal
Special Tools
EN-652 Flywheel Holder
For equivalent regional tools, refer to Special Tools.
Install EN-652 holder (1) to hold the engine flywheel (2).
Remove and DISCARD the 6 engine flywheel bolts (2).
Remove the engine flywheel (1). ...
