Chevrolet Sonic Repair Manual: Front Wheel Drive Shaft Seal Replacement - Case Side

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Front Wheel Drive Shaft Seal Replacement - Case Side



Front Wheel Drive Shaft Seal Replacement - Case Side

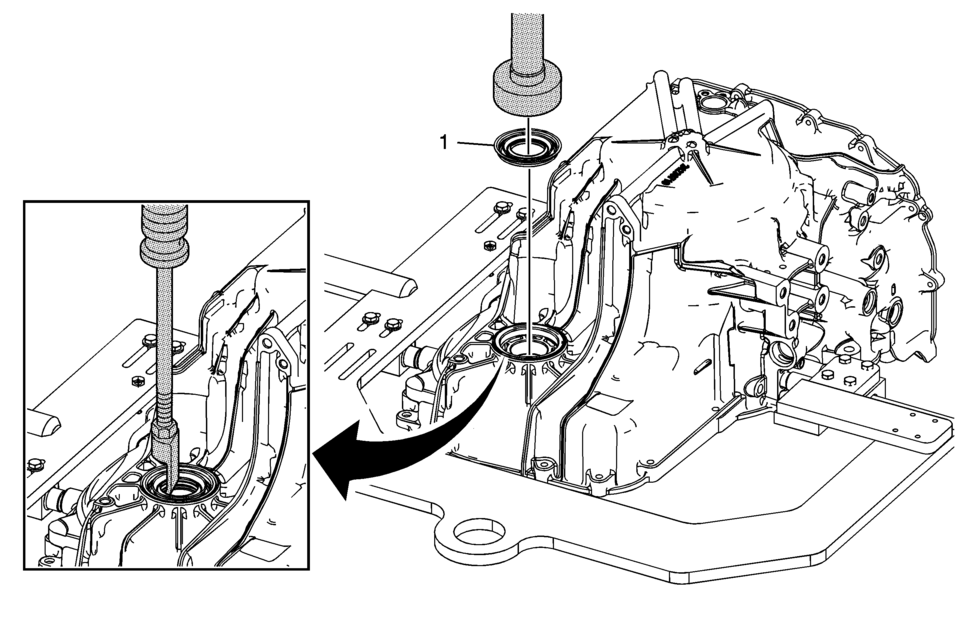

Callout

Component Name

1

Front Wheel Drive Shaft Oil Seal

Special Tools

  • DT-23129 Universal Seal Remover
  • DT-47790 Seal Installer
  • GE-6125-1B Slide Hammer
  • GE-8092 Driver Handle

For equivalent regional tools, refer to Special Tools.
