Fuel Injector Replacement

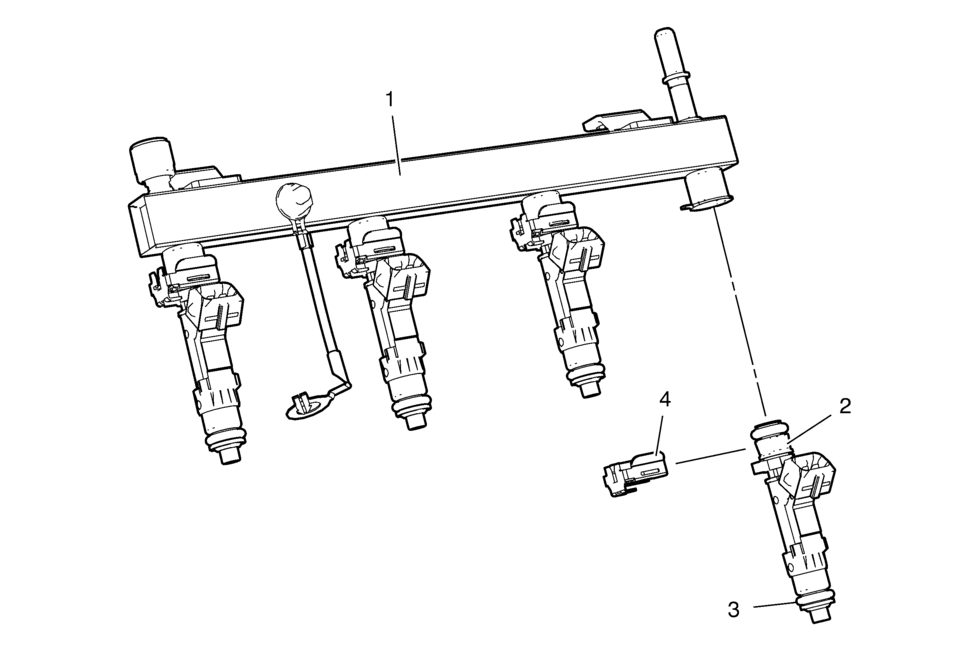

Callout

Component Name

Preliminary Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
  2. Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement.

1

Fuel Rail

2

Fuel Injector

3

Fuel Injector Seal Ring

4

Fuel Injector Retainer Clamp
