Chevrolet Sonic Repair Manual: Hydraulic Valve Lash Adjuster Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valve Actuating Assembly / Hydraulic Valve Lash Adjuster Installation



    Note:

    Mind the installation position of the hydraulic valve lash adjusters.

  1. Lubricate the hydraulic valve lash adjusters with engine oil.

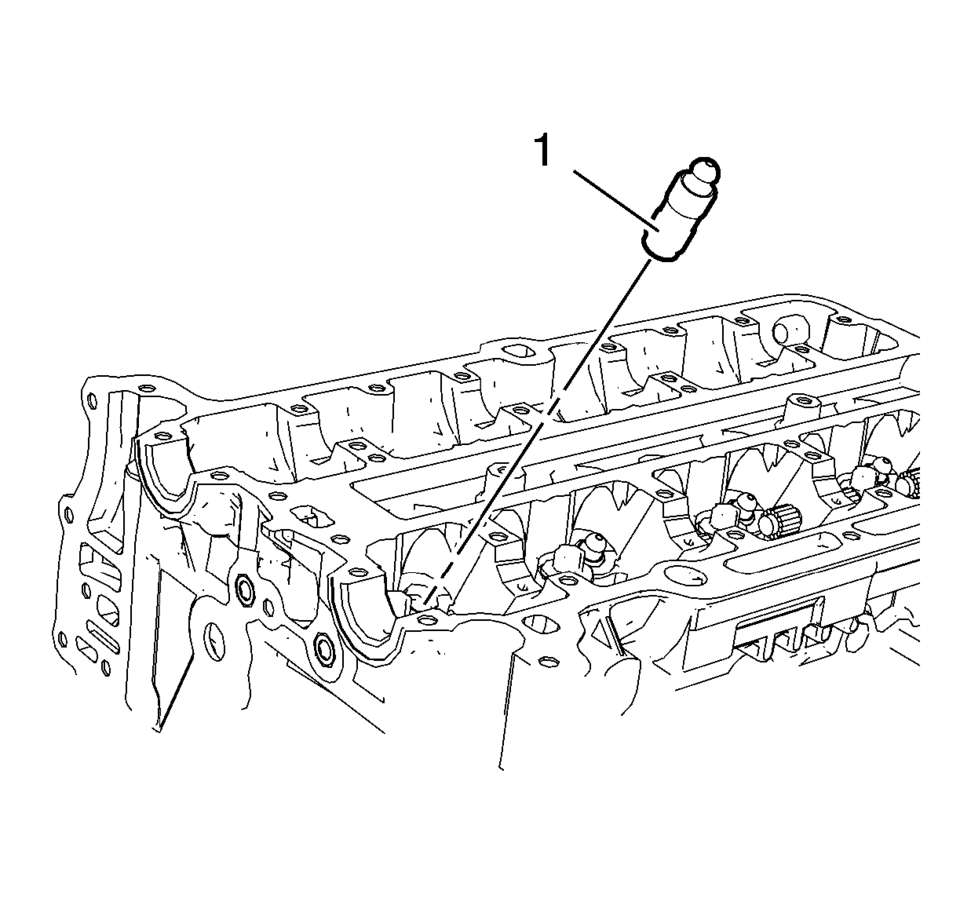

  2. Install the 16 hydraulic valve lash adjusters (1).
