Chevrolet Sonic Repair Manual: Input, Reaction, and Output Carrier Disassemble

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Input, Reaction, and Output Carrier Disassemble

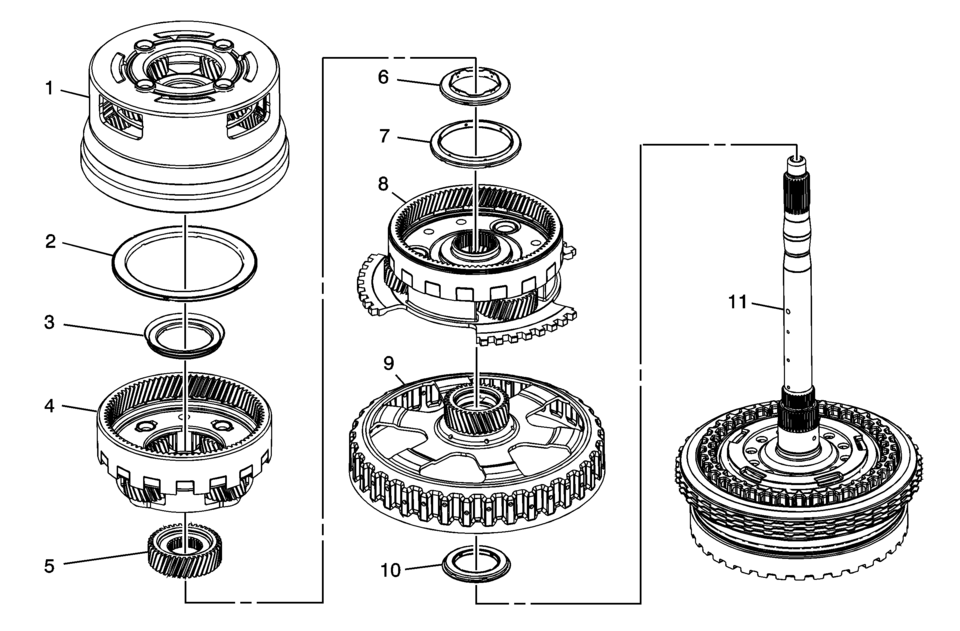

Input, Reaction, and Output Carrier Disassemble

Callout

Component Name

1

Output Carrier Assembly

Note:

  • The 6T30 and 6T40 have 4 pinions.
  • The 6T45 and 6T50 have 5 pinions.

2

Output Carrier Thrust Bearing Assembly

3

Input Sun Gear Thrust Bearing Assembly

4

Input Carrier Assembly

Note:

  • The 6T30 and 6T40 have 4 pinions.
  • The 6T45 and 6T50 have 5 pinions.

5

Input Sun Gear

6

Input Sun Gear Thrust Bearing Assembly

7

Input Carrier Thrust Bearing Assembly

8

Reaction Carrier Assembly

Note:

Starting in 2012, all 6T30/40/45/50 models have 3 pinion reaction carriers. The 3 pinion reaction carriers are back serviceable for all models.

Original Configuration:

  • The 6T30 and 6T40 had 3 pinions.
  • The 6T45 and 6T50 had 4 pinions.

9

Reaction Carrier Sun Gear Assembly

10

Reaction Carrier Sun Gear Thrust Bearing

Note:

The sun gear thrust bearing may be stuck to the sun gear.

11

3? Reverse and 4?? Clutch Housing Assembly
