Input Shaft Support Replacement

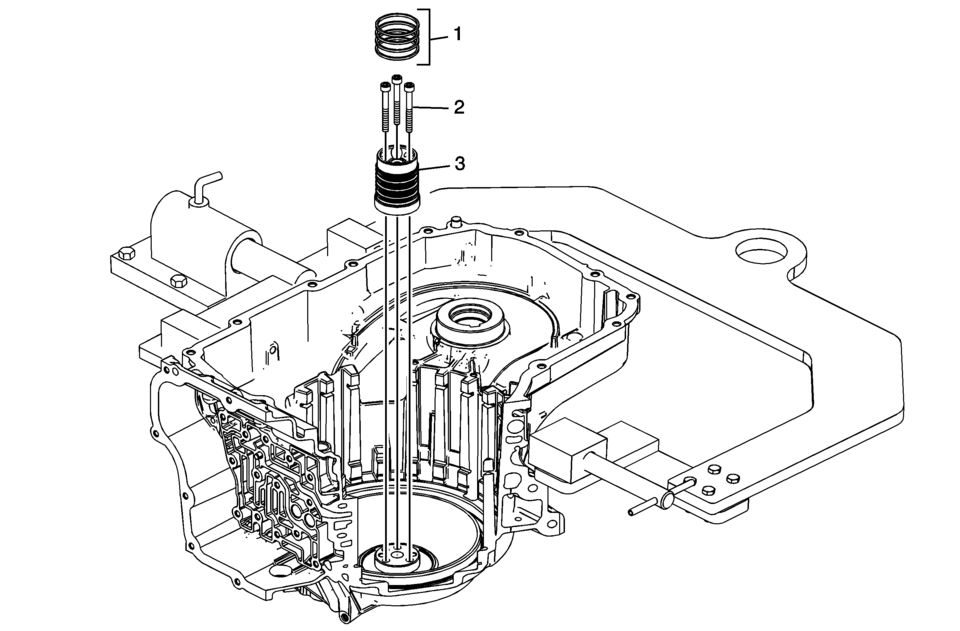

Callout

Component Name

1

3-5 Reverse and 4-5-6 Clutch Fluid Seals (Qty: 4)

Note:

  • Discard the fluid seals. They are not reusable.
  • Refer to 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement.

2

Input Shaft Support Bolts M6 x 50 (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


12 Y (106 lb in)

3

Input Shaft Support

Note:

Inspect the support for wear, damage or porosity.
