Chevrolet Sonic Repair Manual: Instrument Panel Outer Trim Cover Replacement
|
Callout |
Component Name |
|---|---|
|
1 |

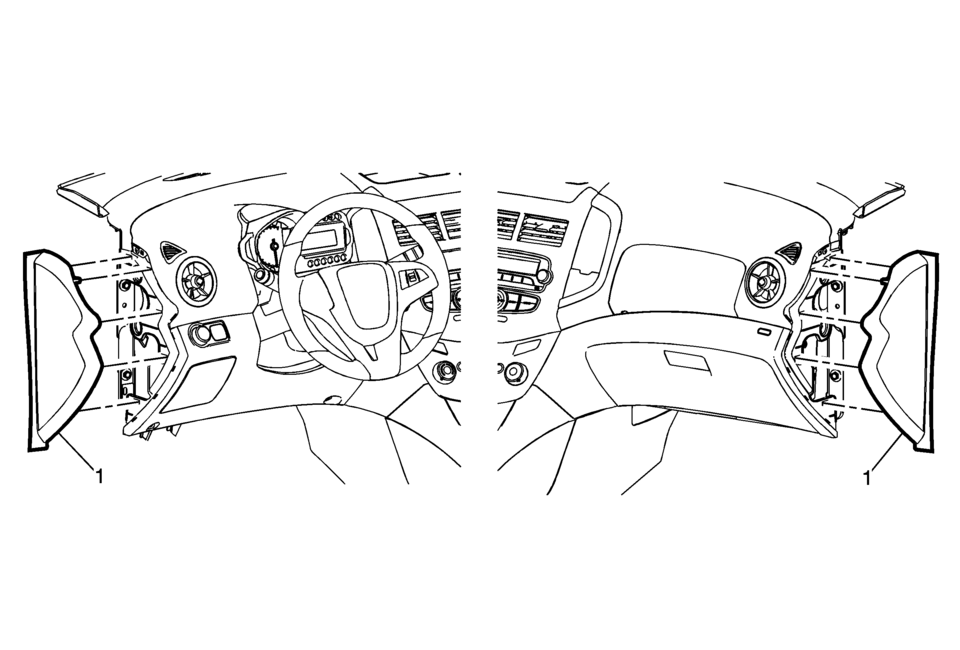

Instrument Panel Outer Trim Cover (Qty:?€‰2) Procedures
Use a flat bladed plastic trim tool in order to disengage the retainers securing the instrument panel outer trim covers to the instrument panel assembly. |
Instrument Panel Lower Trim Pad Cover Replacement (Without AAL)
Instrument Panel Lower Trim Pad Cover Replacement
Callout
Component Name
1
Instrument Panel Lower Trim Pad Fastener (Qty ...
Instrument Panel Tie Bar Replacement
Removal Procedure
Remove the Instrument panel assembly. Refer to Instrument Panel Assembly
Replacement.
Remove the steering column and wheel from the vehicle. Refer to Steering
...
