Chevrolet Sonic Repair Manual: Manual Shift Shaft and Seal Replacement

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Manual Shift Shaft and Seal Replacement

Special Tools

DT-45201 Cooler Line Seal Remover
DT-49101 Seal Installer

For equivalent regional tools, refer to Special Tools.

Removal Procedure

Remove the battery tray. Refer to Battery Tray Replacement.
Remove the manual shaft and position switch assembly. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement.

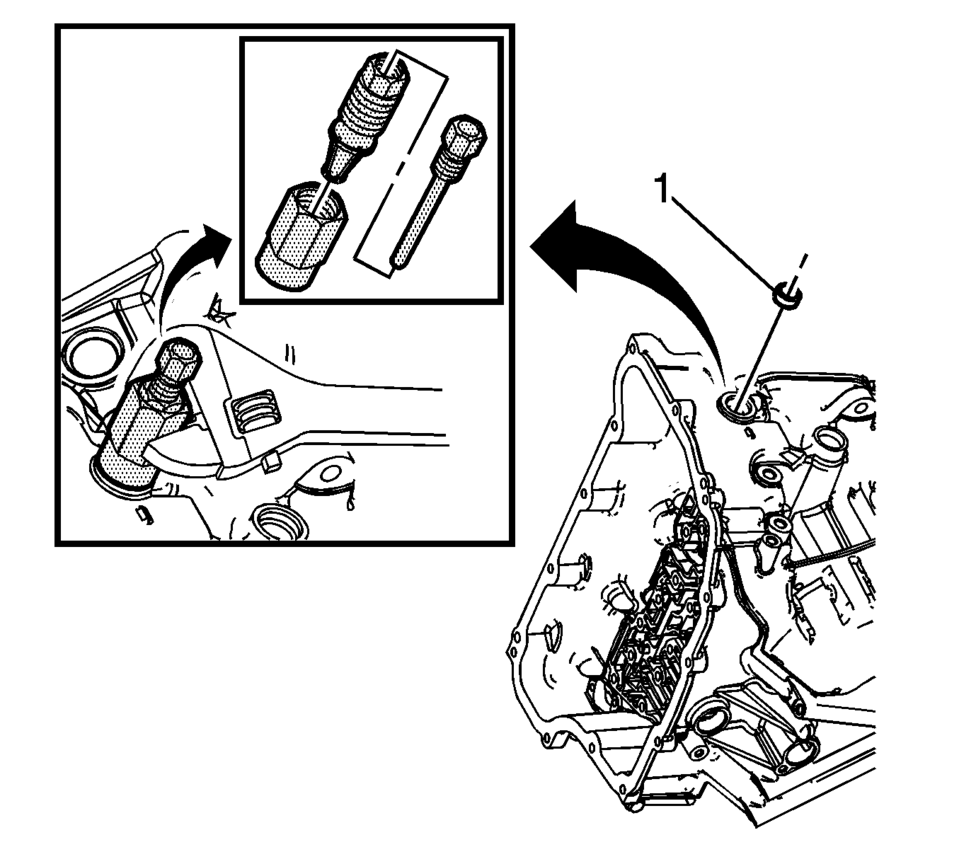

Remove the manual shaft seal (1) using DT-45201 remover .

Installation Procedure

Install the manual shaft and position switch assembly. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement.

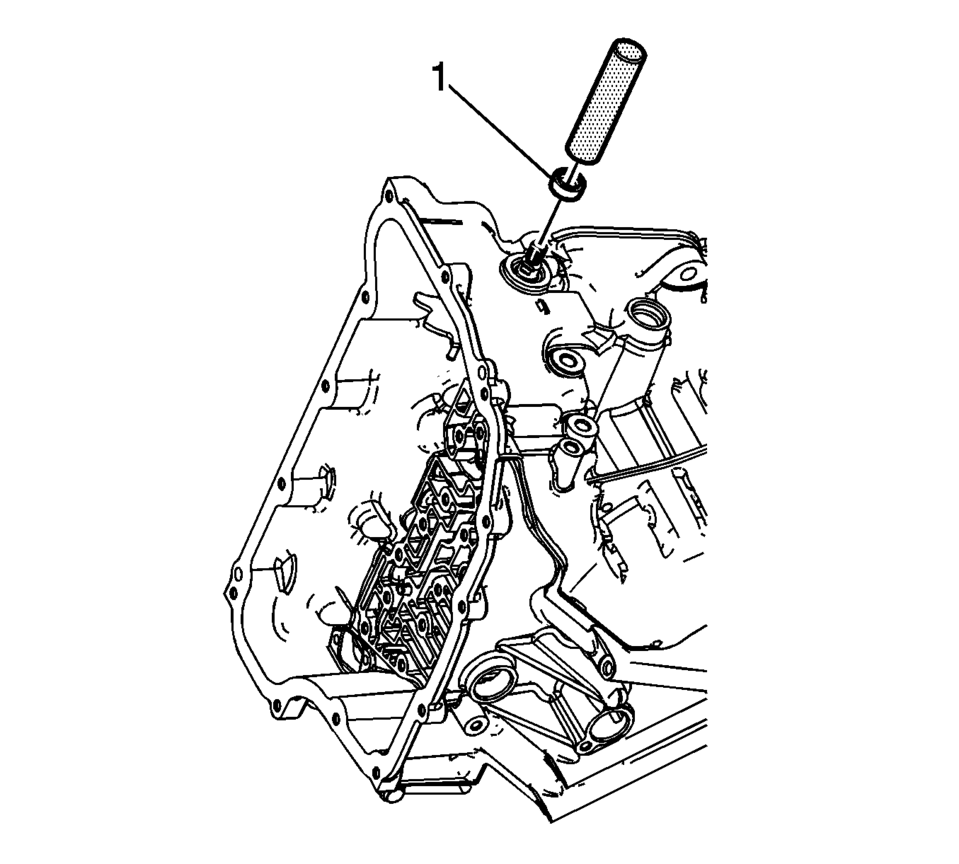

Install the manual shaft seal (1) using DT-49101 seal installer .
Install the battery tray. Refer to Battery Tray Replacement.
