Chevrolet Sonic Repair Manual: Mode Control Cable Replacement (LHD)

Chevrolet Sonic Repair Manual / HVAC / HVAC Controls & Sensors / Mode Control Cable Replacement (LHD)



Mode Control Cable Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the heater and air conditioning control.Refer to Heater and Air Conditioning Control Replacement
  2. Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement
  3. Remove the left floor duct. Refer to Floor Air Outlet Duct Replacement - Left Side

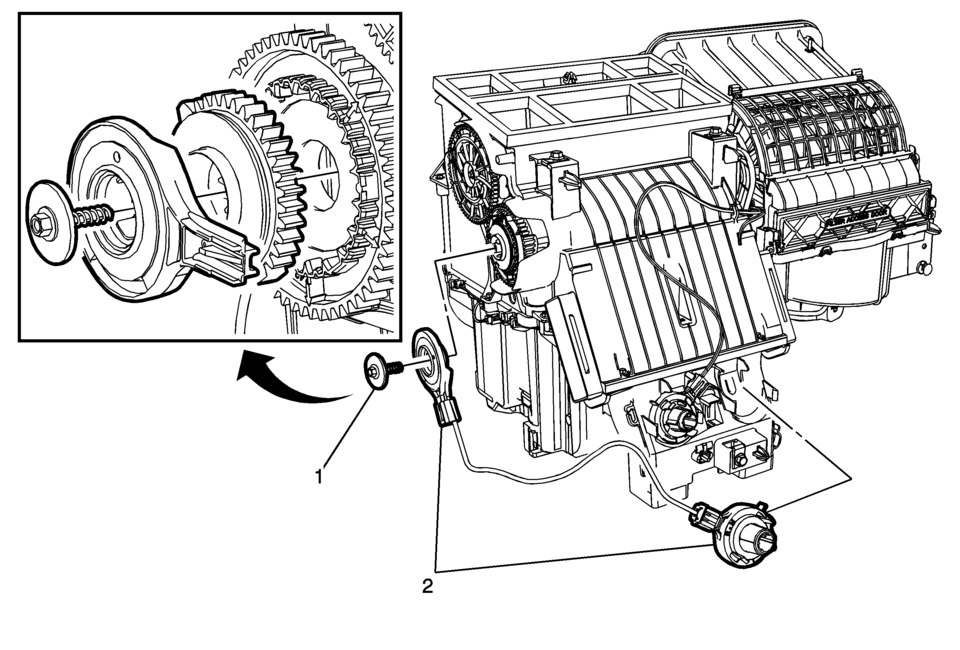

1

Mode Control Cable Retaining Screw

Caution:

Refer to Fastener Caution.

Tighten


1.2 Y (11 lb in)

2

Mode Control Cable
