Chevrolet Sonic Repair Manual: Output Speed Sensor Replacement
|

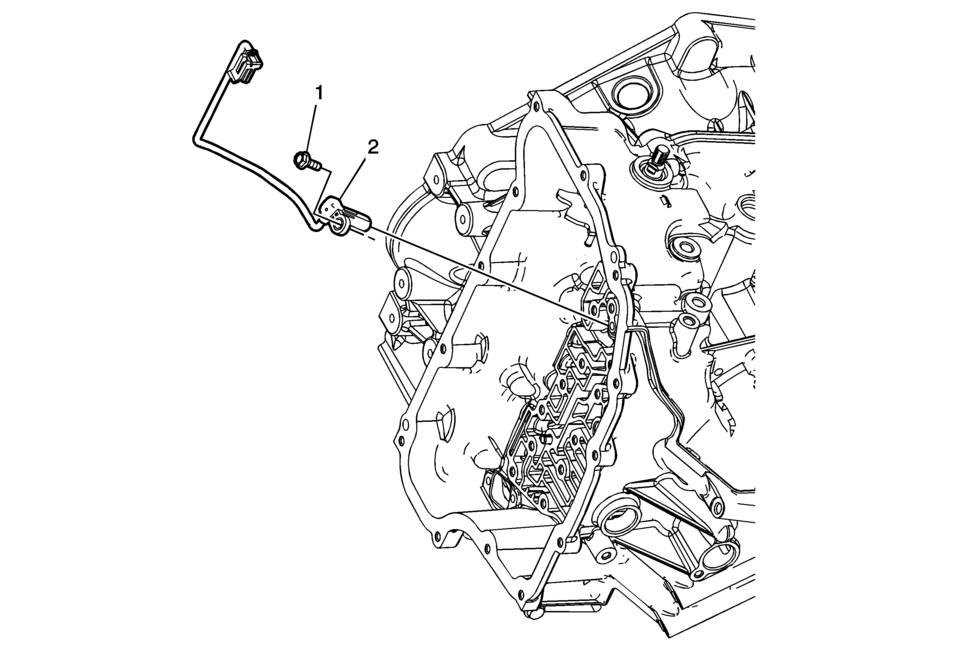

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the control valve body. Refer to Control Valve Body Replacement. |
|
|
1 |
Output Speed Sensor Bolt M6 x 18 Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
|
2 |
Output Speed Sensor Procedure
Perform the transmission adaptive values learn procedure. Refer to Transmission Adaptive Values Learn. |
