Chevrolet Sonic Repair Manual: Rear Seat Center Shoulder Belt Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Restraints / Primary / Rear Seat Center Shoulder Belt Replacement (Sedan)

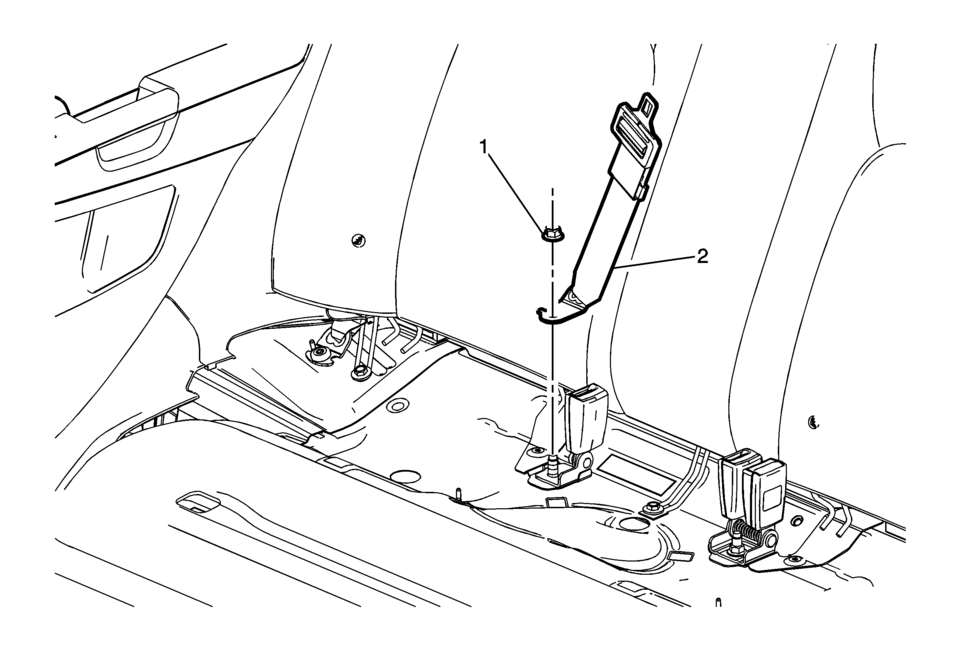

Rear Seat Center Shoulder Belt Replacement

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation.

1

Rear Seat Center Shoulder Belt Buckle Fastener

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

2

Rear Seat Center Shoulder Belt
