Roof Rail Rear Assist Handle Replacement

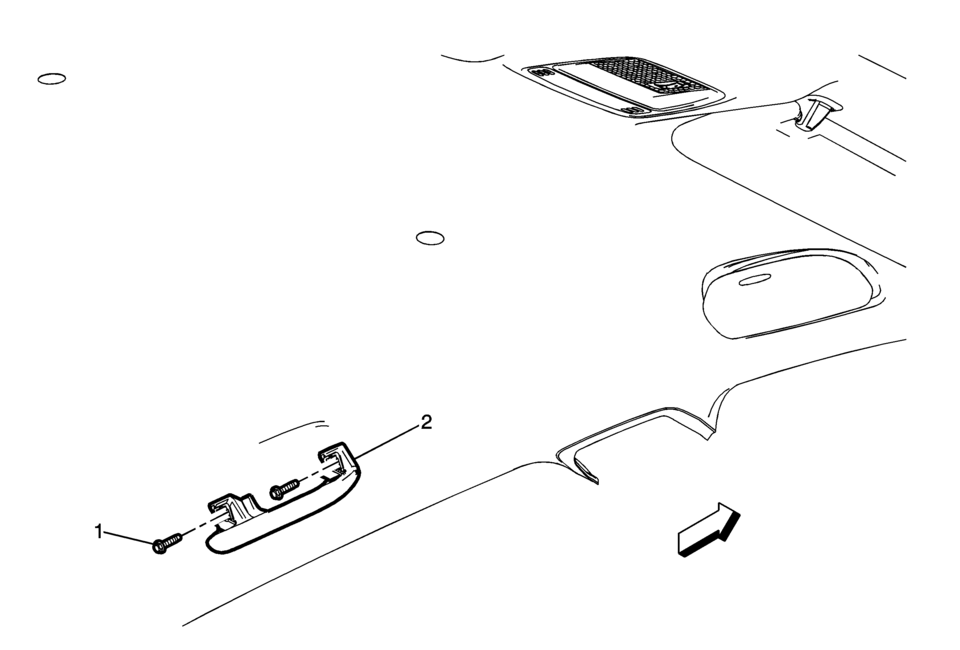

Callout

Component Name

1

Roof Rail Rear Assist Handle Fastener (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Procedure

  1. Fold the assist handle downward and hold.
  2. Use a small flat-bladed tool to open the assist handle covers to access the screws.
Tighten


6?€‰Y?€‰(53?€‰lb?€‰in)

2

Roof Rail Rear Assist Handle Assembly
