On vehicles with this feature, the sunroof only operates when the ignition is turned to ON/RUN or Retained Accessory Power (RAP) is active.

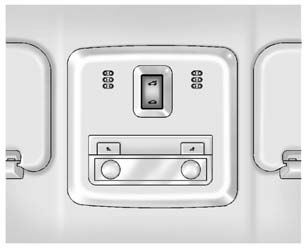

Open/Close: To open the sunroof, press and hold the rear of the switch. To close the sunroof, press and hold the front of the switch.
Vent: Press and hold the front of the switch to vent the sunroof.
Manually close the sunshade.
The sunroof will not operate if the vehicle has an electrical failure.
See Sunroof.
