Windshield Upper Reveal Molding Replacement
Callout	Component Name
Preliminary Procedures Remove the windshield to replace the reveal molding. Refer to Windshield Replacement.

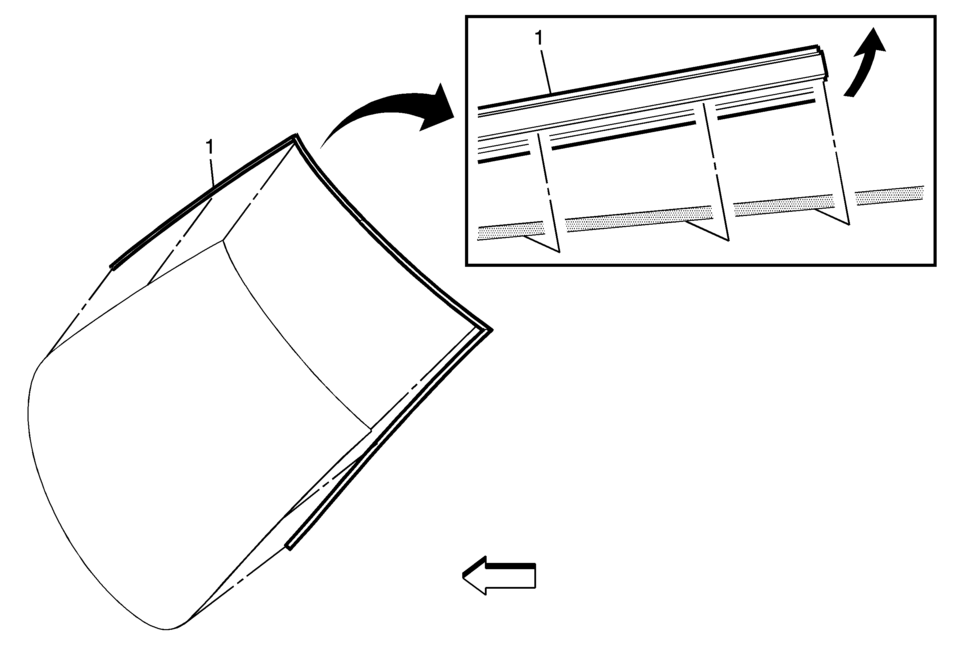

1	Windshield Reveal Molding Warning: Refer to Glass and Sheet Metal Handling Warning. Procedure Mark the window at both ends before remove the reveal molding for installing. Place the window on a clean and dry surface. Use a suitable plastic tool, use care when releasing the reveal molding not to pry on the window. Clean around the edges and surface of the window and molding with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
