Control Solenoid Valve and Transmission Control Module Assembly Installation

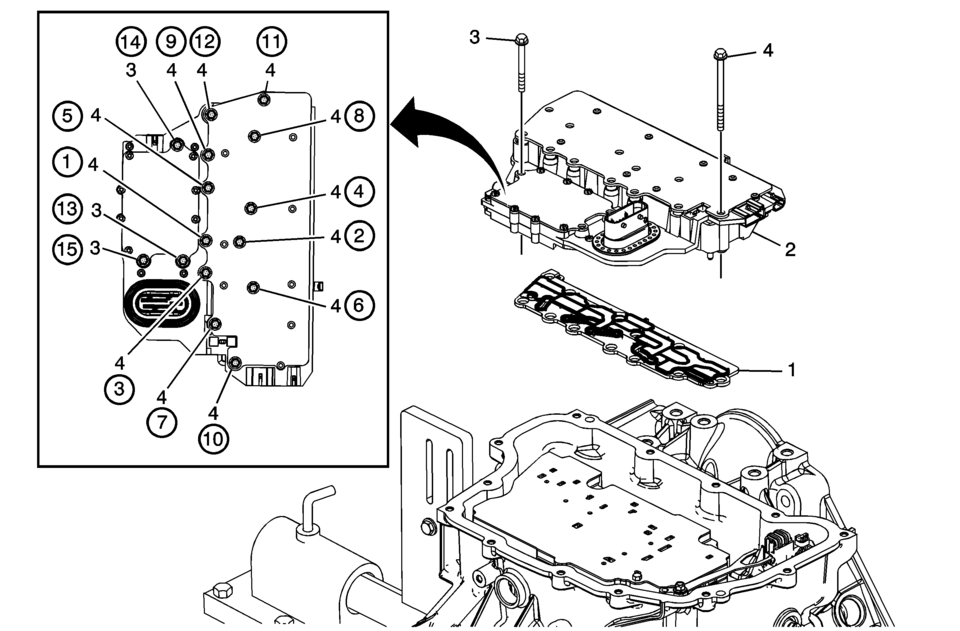

Callout

Component Name

1

Control Solenoid Valve Assembly Filter Plate

Caution:

Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.

Note:

Install a NEW filter plate to prevent fluid leaks past the fluid seals.

2

Control Solenoid (w/Body and TCM) Valve Assembly

3

Control Valve Body Bolt M5 x 40.5 (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


7 Y (62 lb in)

4

Control Valve Body Bolt M6 x 97 (Qty: 12)

Tighten


10 Y (89 lb in)
