Chevrolet Sonic Repair Manual: Door Lock Switch Replacement
|

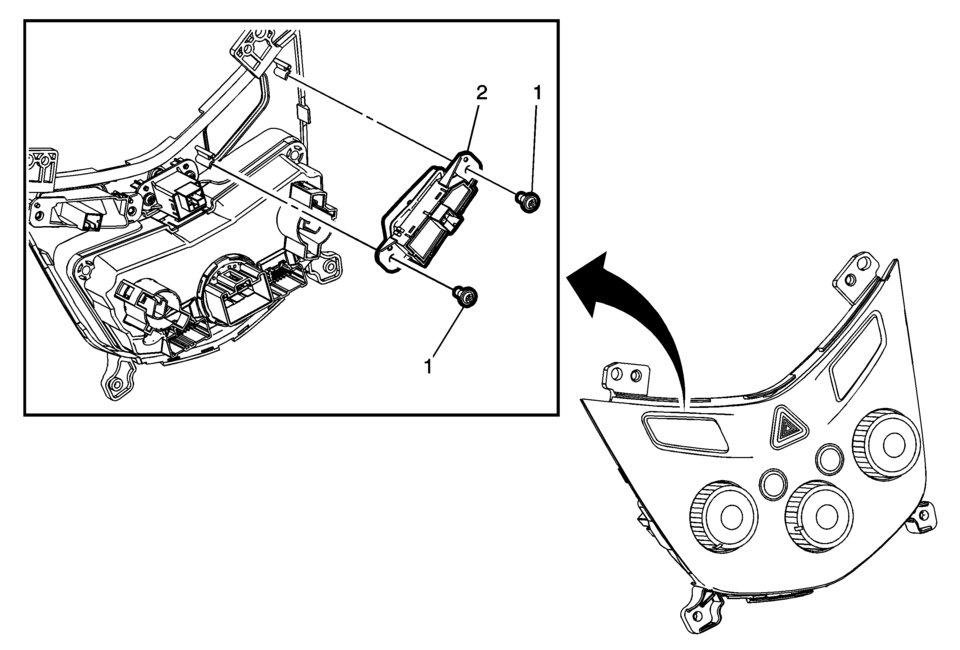

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement. |
|
|
1 |
Door Lock Switch Bolts (Qty:?€‰2) Caution: Refer to Fastener Caution. |
|
2 |
Door Lock Switch Procedure
Disconnect the electrical connector. |
