Chevrolet Sonic Repair Manual: Driver or Passenger Seat Adjuster Handle Replacement (4 Way Uplevel)
|

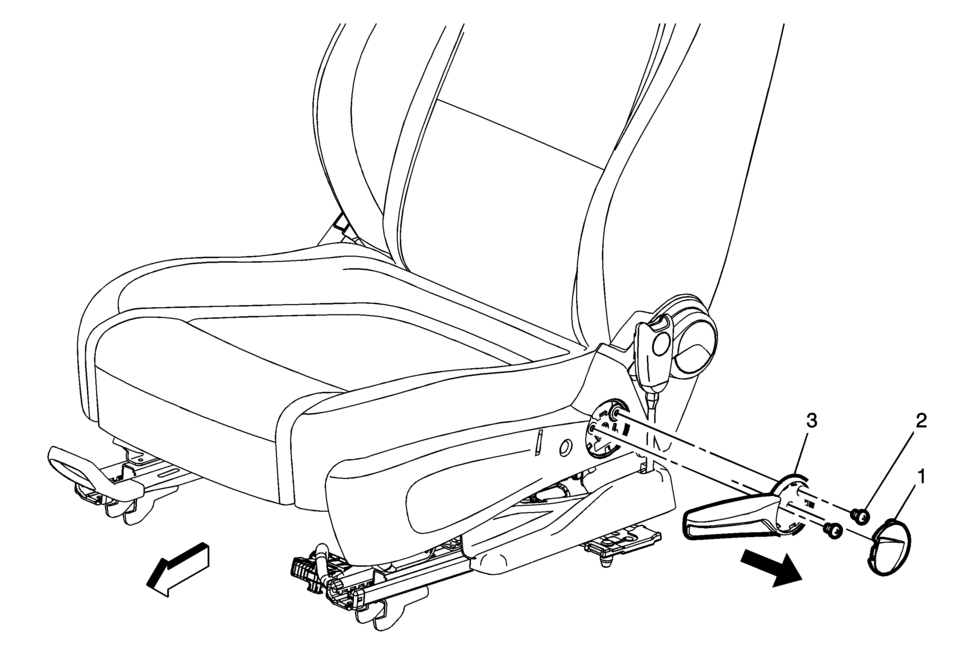

Callout |
Component Name |
|---|---|
|
1 |
Front Seat Adjuster Handle Cover Procedure
Use a flat-bladed tool to push inward on the three tabs to release the handle cover from the handle assembly. |
|
2 |
Front Seat Adjuster Handle Fastener (Qty:?€‰2) Caution: Refer to Fastener Caution. |
|
3 |
Front Seat Adjuster Handle Procedure
Use a flat-bladed tool to release the adjuster handle from the seat frame assembly. |
Information
...
Driver or Passenger Seat Back Cover and Pad Replacement
Driver or Passenger Seat Back Cover and Pad Replacement
Callout
Component Name
Warning: Refer to SIR Warning.
War ...
