Callout |
Component Name |
---|---|
1 |

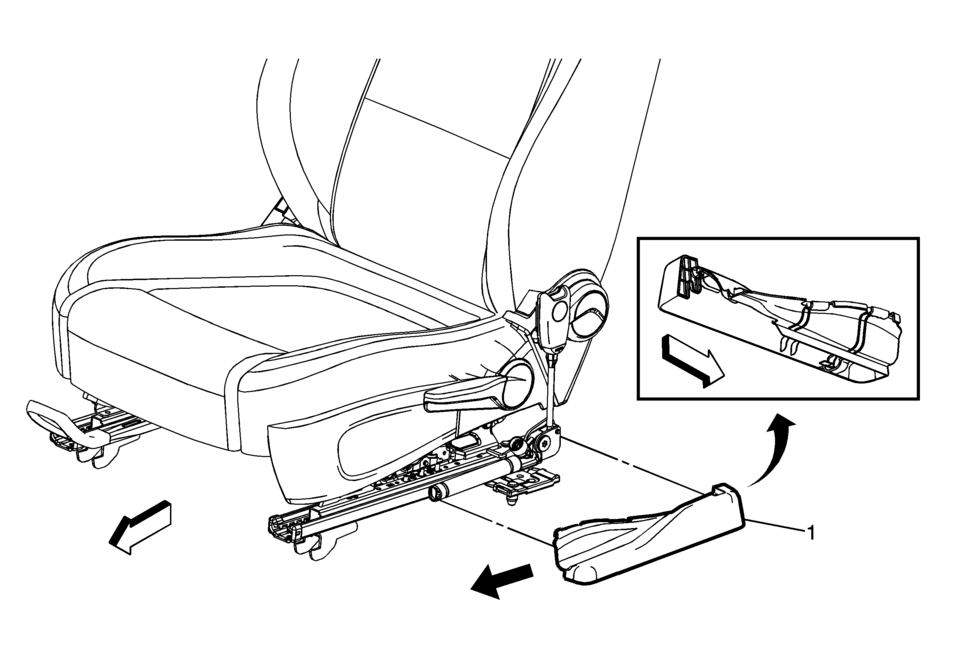

Driver or Passenger Seat Belt Tensioner Cover Procedure
Remove the tensioner cover by pushing downward on the rear and center of the cover. Then applying light pressure to the front of the cover, push the cover rearward to remove it from the seat frame. |
Drivetrain and Front Suspension Frame Replacement
Special Tools
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Support the radiator and condenser from above using the upper brackets
on each side.
Raise the vehicle on a hoist. Refer to Lifting and Jacking the Vehicle.
Re ...
Evaporative Emission System Hose/Pipe Replacement
Removal Procedure
Disconnect the evaporative emission pipe (1). Refer to Plastic Collar
Quick Connect Fitting Service.
Remove the plastic retainer (1) and disconnect the evaporative emission
pipe (2).
Lift and support t ...
Fuel Tank Draining
Warning: Refer to Gasoline/Gasoline Vapors
Warning.
Note: The fuel tank must be drained with a suitable, commercially-available
fuel removal unit and suction hose - follow safety regulations and national
legislation. The fuel tank is fitted with a refill limit float valv ...
