Chevrolet Sonic Repair Manual: Headlamp Bracket Replacement
|

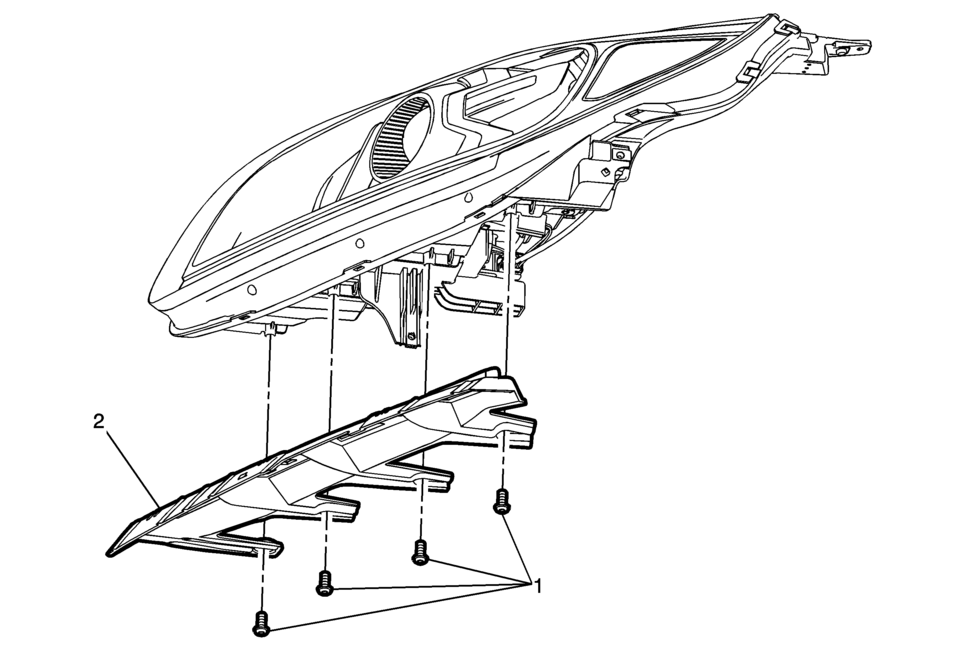

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement. |
|
|
1 |
Headlamp Bracket Screw (Qty:?€‰4) Caution: Refer to Fastener Caution.
2.5?€‰Y (22?€‰lb?€‰in) |
|
2 |
Headlamp Bracket |
Headlamp Aiming
Headlamp aim has been preset and should need no further adjustment.
If the vehicle is damaged in a crash, the headlamp aim may be affected. If adjustment
to the headlamps is necessary, see your de ...
Headlamp Bulb Replacement
Headlamp Bulb Replacement
Callout
Component Name
Preliminary Procedure
Open and support the hood assembly.
1
...
