Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement. |
|
1 |

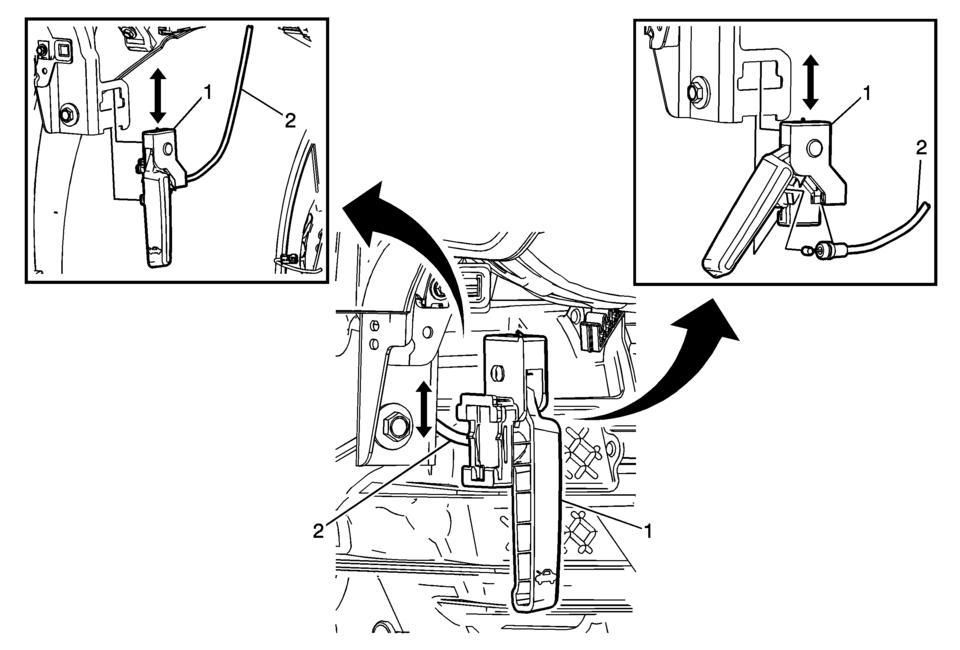

Hood Primary Latch Release Cable Handle Procedure
Press the release cable handle upward to release the retainers from the instrument panel bracket. |
2 |
Hood Primary Latch Release Cable Procedure
Disconnect the hood release cable from the hood release handle. |
Cargo Center Courtesy Lamp Bulb Replacement (Hatchback)
Cargo Center Courtesy Lamp Bulb Replacement
Callout
Component Name
1
Rear Compartment Courtesy Lamp
Refer to Rear Compartment Courtesy Lamp Replacement
2
Cargo Lamp Bulb
...
Parking Brake Adjustment (Drum Brake)
Note: The park brake cable adjusting nut is a nylon lock type. Use
ONLY HAND TOOLS whenever tightening or loosening the adjusting nut.
Apply and fully release the park brake several times. Verify that the park
brake lever releases completely.
Turn ON the ignition. Verify the red B ...
Camshaft Actuator System Description
Camshaft Actuator System Overview
(1)
Camshaft Actuator Vane
(2)
Timing Chain Sprocket
(3)
Engine Oil Pressure-For retarding the camshaft
(4)
Camshaft
(5)
Input Signals from Engine Sen ...
