Chevrolet Sonic Repair Manual: Radiator Replacement (LDE LUW)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Radiator / Radiator Replacement (LDE LUW)

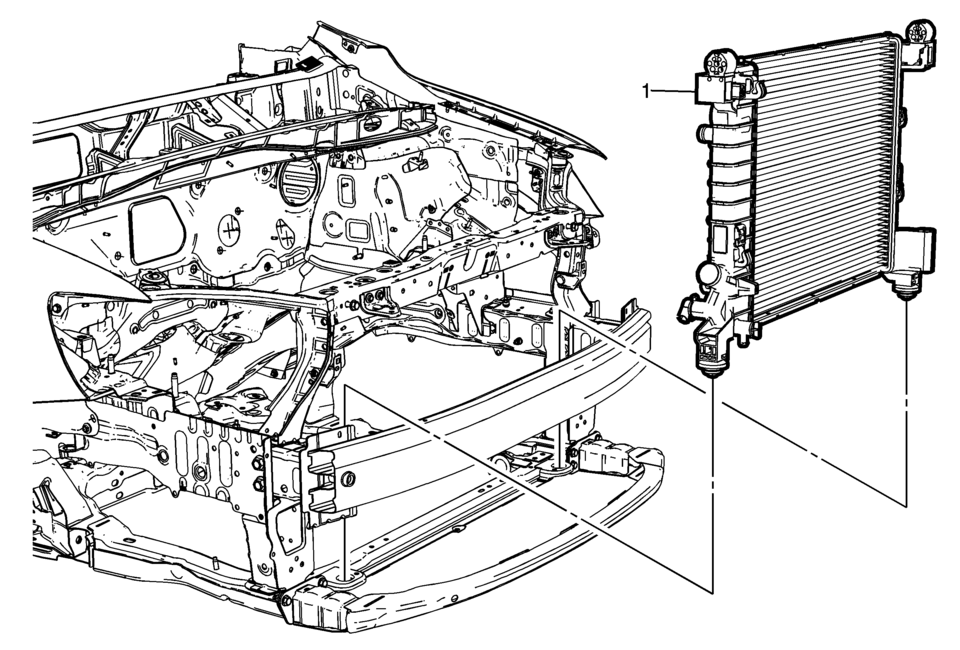

Radiator Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the coolant. Refer to Cooling System Draining and Filling.
  2. Remove the engine coolant temperature sensor.
  3. Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement.
  4. Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement.
  5. Remove the radiator hoses. Refer to Radiator Inlet Hose Replacement and Radiator Outlet Hose Replacement.
  6. Remove the radiator upper bracket. Refer to Radiator Upper Bracket Replacement.

1

Radiator

Tip:

Tilt radiator forward to remove.
