Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement. |
|
1 |

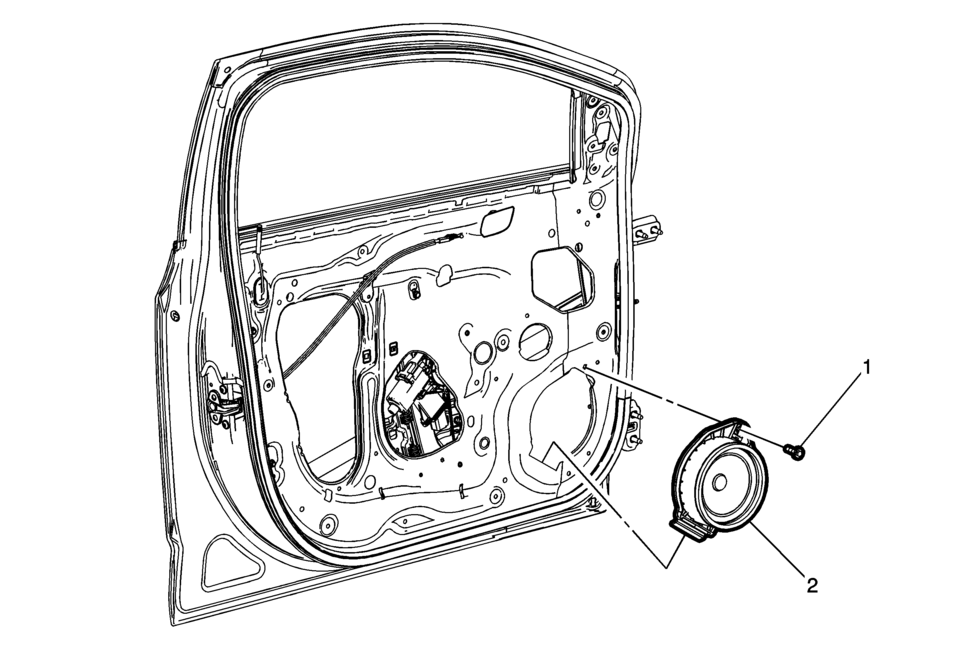

Radio Front Side Door Speaker Bolt Caution: Refer to Fastener Caution. |
2 |
Radio Front Side Door Speaker Procedure
Disconnect the electrical connector. |
Air Conditioning Compressor Bracket Installation
Install the air conditioning compressor bracket (2).
Caution: Refer to Fastener Caution.
Install the 3 air conditioning compressor bracket bolts (1) and tighten
to 22 Y (16 lb ft).
...
Engine Flywheel Replacement
Engine Flywheel Replacement
Callout
Component Name
Preliminary Procedure
Remove the clutch pressure and driven Plate . Refer to Clutch Pressure
and Driven Plate Replacement.
Special Tools
EN-652 Flywheel Holder
...
Turbocharger System Description
12
(1)
Turbocharger Bypass Solenoid Valve
(2)
Multifunction Intake Air Sensor
(3)
Turbocharger Wastegate Regulator Solenoid Valve
(4)
Turbocharger
(5)
Turbocharger Bypass Valve
(6)
Turbocharger Was ...
